Reliable soldering with industry proven technology!

The ANALOG 60 is suitable for all soldering tasks with small to medium energy demand. Depending on the demands you can select the antistatic or non antistatic version of the station. The soldering irons BASIC TOOL and ERGO TOOL can be operated with tips of the series 832 and series 842.

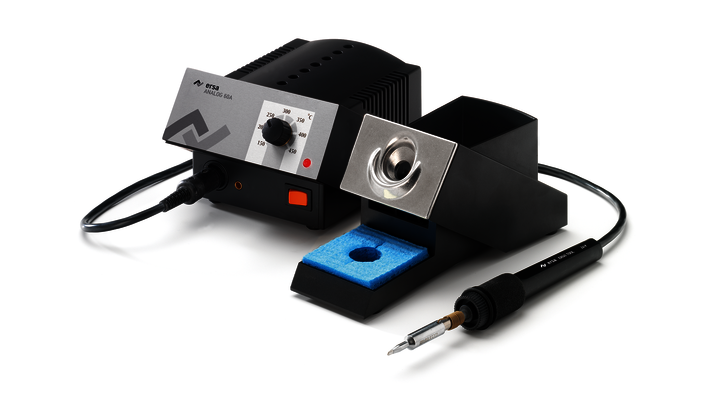

Highlights ANALOG 60 / ANALOG 60 AErsa Soldering Station

  • Analog soldering station in non antistatic or antistatic design and soldering iron BASIC TOOL or ERGO TOOL
  • Heat-up power 190 W
  • Reliable and long-life PTC heating technology
  • Free adjustable tip temperature
  • Very large range of price attractive, exchangeable long-life soldering tips (series 832 and series 842

VideosErsa ANALOG 60 / ANALOG 60 A

Ersa explains #1 – Soldering tip care

Ersa explains #1 – Soldering tip care

ANALOG 60 / ANALOG 60 AErsa Soldering Station

Technical Data

Dimensions (W x D x H) in mm:
124 x 152 x 92
Weight in kg:
1,9
Antistatic Design (y/n):
both available
Power Rating in W:
60
Nominal voltage in V AC:
230
Secondary voltage in V:
24
Heat up time in sec:
60
Temperature range in °C:
150-450
Digital display (y/n):
n
Test symbol:
CE, VDE

Connectable tools

Order No.::
Description
0670CDJ:
BASIC TOOL
0680CDJ:
ERGO TOOL

Available versions

Order No.::
Description
0ANA60:
ANALOG 60 with BASIC TOOL
0ANA60A:
ANALOG 60 A with BASIC TOOL
