The Ersa EASY ARM 1 and 2 solder fume extraction systems efficiently and economically ensure clean PCBs and healthy breathing air. The EASY ARM 1 and EASY ARM 2 solder fume extraction systems are based on Ersa´s many years of experience in cleaning process air. Both Ersa solder fume extraction systems are characterized by high extraction performance (100 m³/h per extraction arm), efficient filter performance and at the same time extremely quiet operation.

Specifications EASY ARM Ersa Solder Fume Extraction

EASY ARM 1 & 2

  • Infinitely adjustable extraction power
  • Effective 3-stage filter system with a filter effect of 99.95
  • Extraction capacity of 100 m³/h per extraction arm
  • Visual and acoustic reminder signal for filter change
  • High-quality filter materials that can be used for both devices in the EASY ARM series
  • Interface for connection to i-CON soldering stations or a standby switch
  • Flexible system of extraction arms and nozzles enables the individual design of workstations
  • Low space requirement

EASY ARM 1: Efficient, compact solder fume extraction for individual workstations.
EASY ARM 2: Efficient solder fume extraction for up to two soldering workstations.

Technical data

  • Dimensions (W x D x H) in mm: 255 x 255 x 470
    • EASY ARM 2: 255 x 490 x 470
  • Weight in kg: 7.5
    • EASY ARM 2: 15
  • Antistatic version (y/n): yes
  • Rated power in W: 40
    • EASY ARM: 80
  • Power consumption standby in W: 6
    • EASY ARM 2: 8
  • Rated voltage in V AC: 100-240
  • Noise level in dB (A): 50
  • Test mark: CE
  • Volumenstrom in m³/h: 100
    • EASY ARM 2: 2 x 100

Application

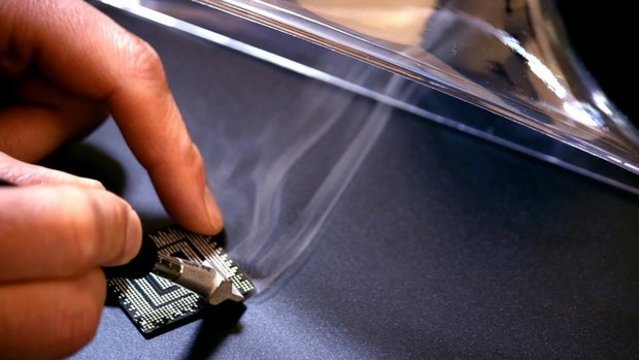

  • Filtering harmful soldering fumes from the ambient air
  • 3-stage filter system:
    • Pre-filter: catches larger particles and dust
    • Combi filter: separates microparticles
    • Activated carbon filter: binds toxic gases
  • Prevents flux deposits on printed circuit boards

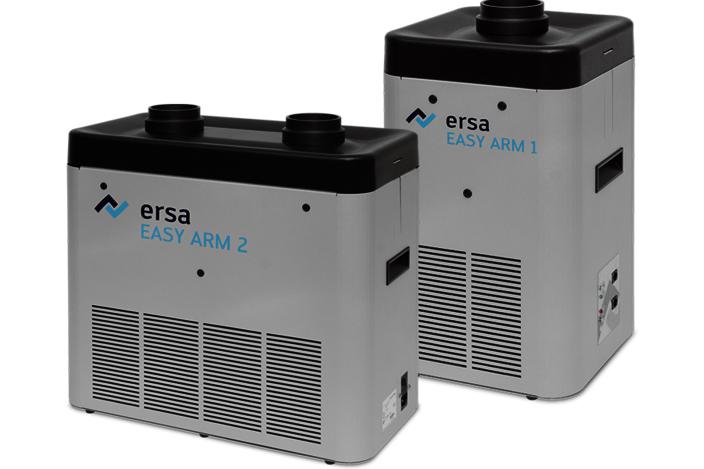

Ersa Solder Fume Extraction EASY ARM 1 & 2

Ersa EASY ARM soldering fume extractions ensure healthy breathing air during soldering with high extraction power and efficient filter performance - quieter and more efficient than ever!
