From casting finishing to automation and special requirements
True to the company´s vision, Kurtz contributes not only superior machine technology but also extensive expert knowledge already in the conception phase. The result is perfect, optionally customized solutions for the customer that enable economical, energy-efficient as well as process and future-proof parts production.
1/4
Casting Solutions
Automation

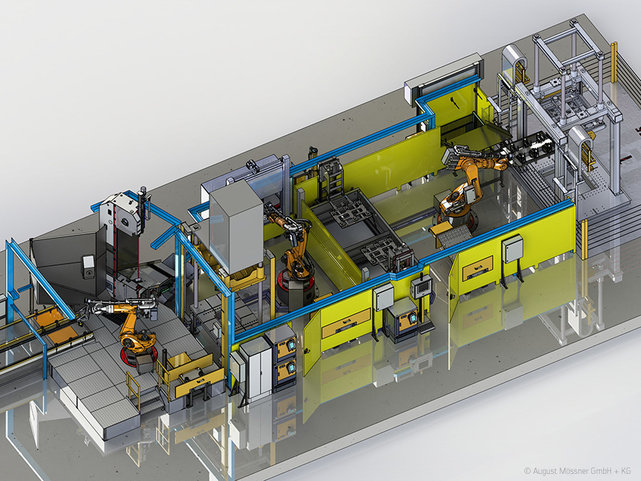

Automation line for chassis parts: The most efficient solution for mass production from casting to final inspected casting automates the following operations
- Casting removal
- Filter and core setting
- Cooling
- Marking
- Core removal
- Sawing
- Trimming and cleaning
-
Inspection process via X-ray machines or computer tomographs
Picture: August Mössner GmbH + Co. KG

2/4
Casting Solutions
Automation

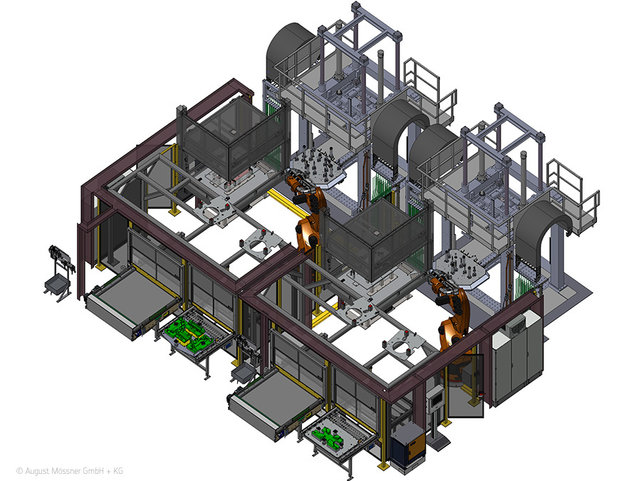

Versatile automation cells from wheel carriers to hollow cast axle carriers - maximum flexibility thanks to automatic gripper changeover for fast product changes
- Casting removal
- Setting filters and cores
- Marking
- Infeed and outfeed conveyors for feeding filters and sand cores and removal from the castings
-
Gripper station for fast gripper and product changes
Picture: August Mössner GmbH + Co. KG

3/4
Casting Solutios
Automation

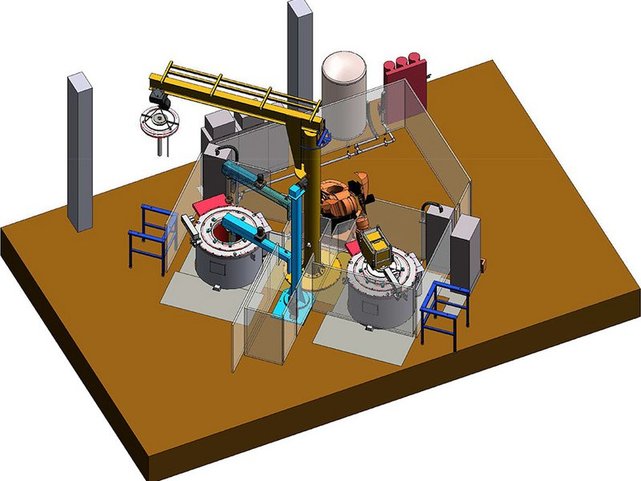

Perfect handling for casting lost forms

4/4
Casting Solutions
Automation

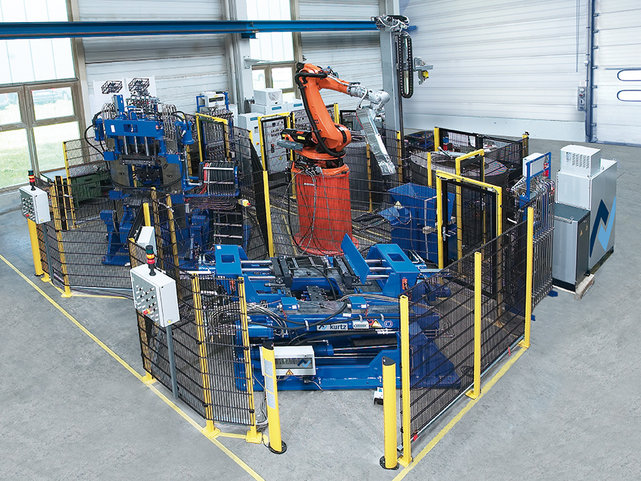

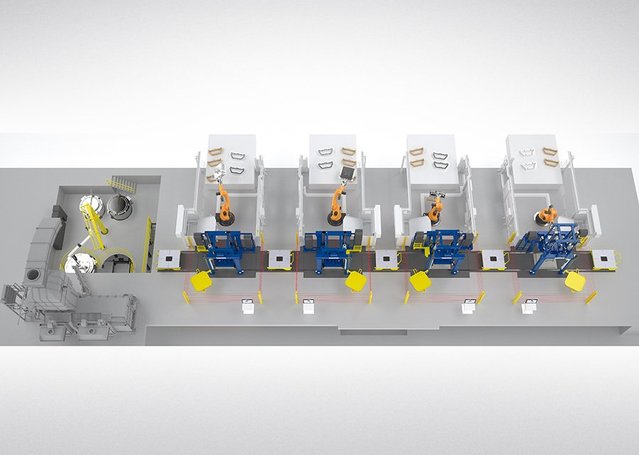

Automated casting with integrated handling
- Casting machines
- Robot for melt dosing and pouring into the machine
- Freely programmable cell control
- Cooling technology
- Holding furnaces
- Handling system for castings and sand cores
- Conveyor technology
- Heating technology for ladles and ingot molds

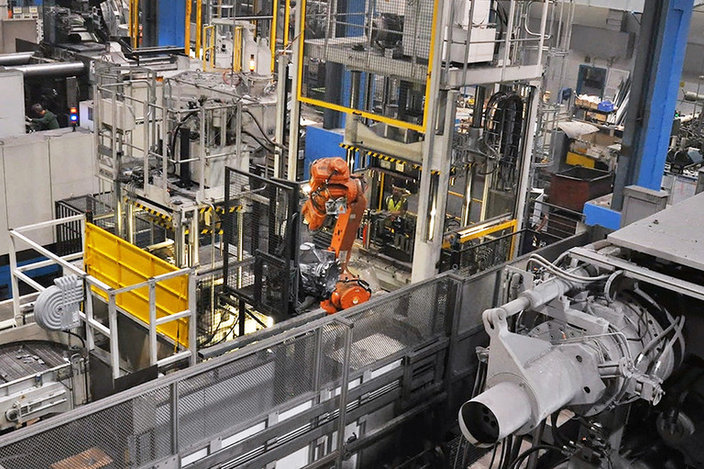

From casting to casting finishing Turnkey Solutions
In addition to the casting equipment, we realize the complete automation optimally matched to the respective requirements of the customer. With well-founded expertise in the field of complete solutions and innovative technologies, we take care of the entire process chain. Our automated casting cells handle the insertion of cores and filters as well as the marking of the workpieces.
With gripper changing systems, the automations are possible as multi-versions and thus allow fast product changes. Feeding with cores and filters is made possible via infeed and outfeed conveyors or shuttles - as is the removal of the marked castings.
