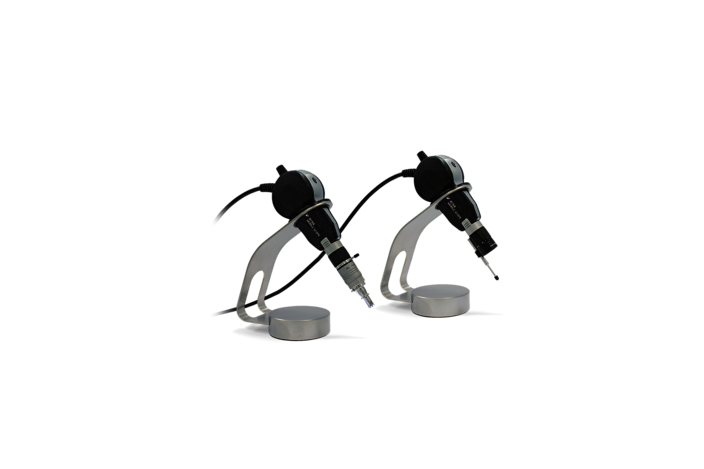

Ersa MOBILE SCOPE optical inspection system Ersa Optical Inspection
Hand-guided system for quick inspection of concealed solder joints
Compact, portable video microscope for inspecting solder joints in electronics production. It was designed for optical inspection and digital image recording as well as measurement tasks on solder joints of ball grid array (BGA), μBGA, CSP and flip chip components.
Technical highlightsErsa Optical Inspection
- Mobiles Inspektionssystem mit zwei Schnellwechselobjektiven (ausstattungsabhängig):
- 90° BGA-Optik (ca. 280 µm Spaltmaß)
- 0° Makrozoom-Aufsichtsoptik
- Integrierte, dimmbare LED-Beleuchtung
- N-MOS-Farbkamera 5 Megapixel, mit USB-Anschluss
- Zusätzliches LED-Faserlicht bei BGA-Optik inklusive
AdvantagesErsa Optische Inspektion

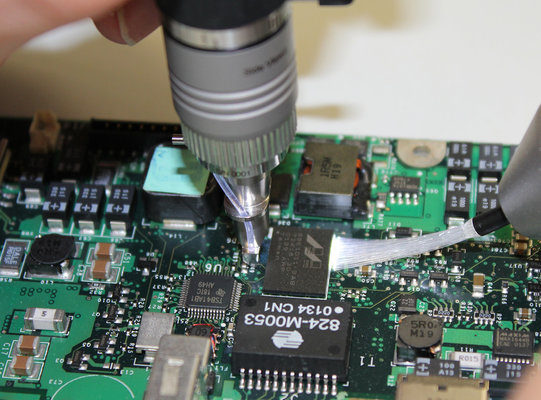

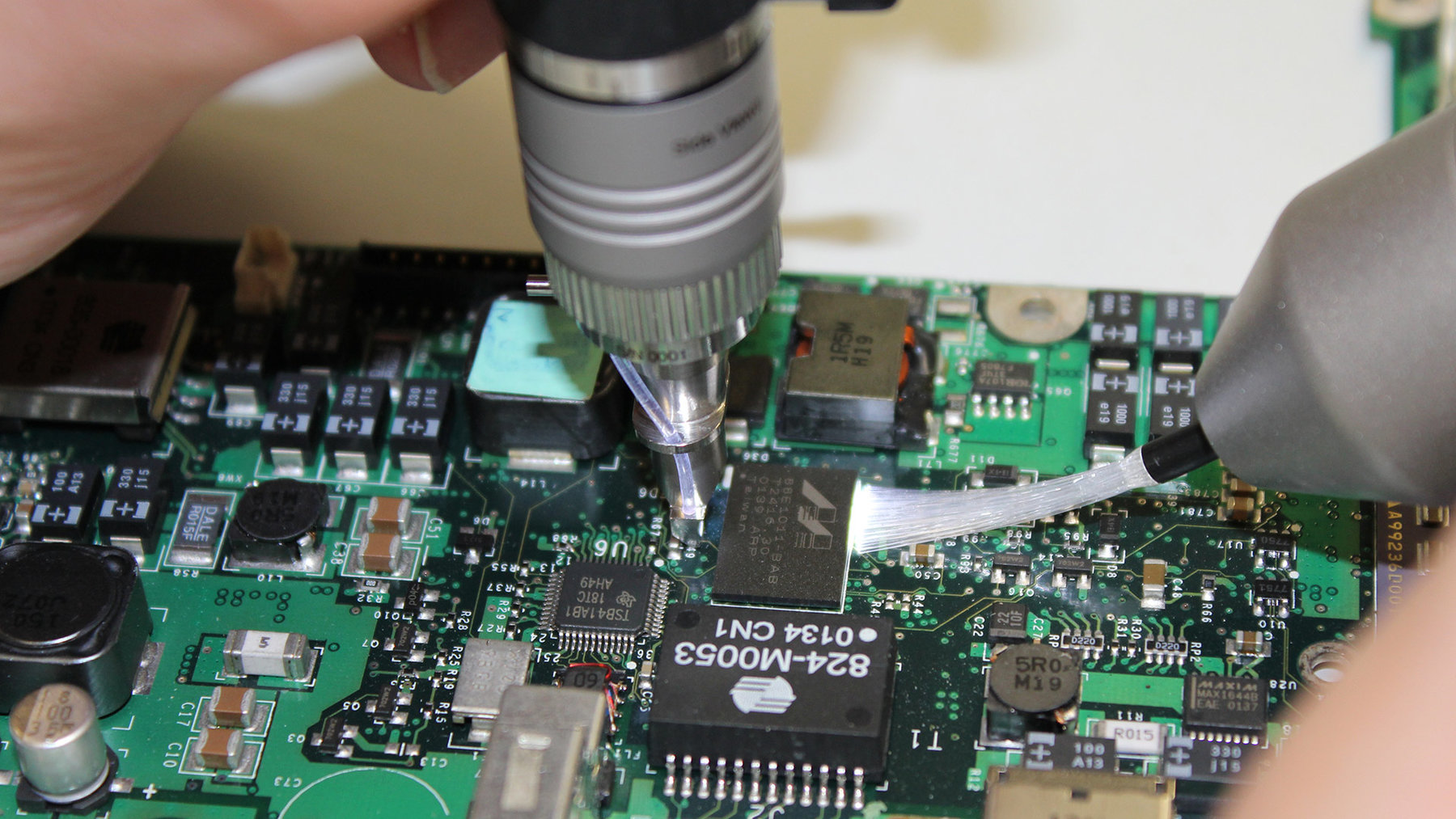

- Fast, hand-guided inspection of concealed solder joints
- Ideal for inspection in constantly changing locations and for servicing

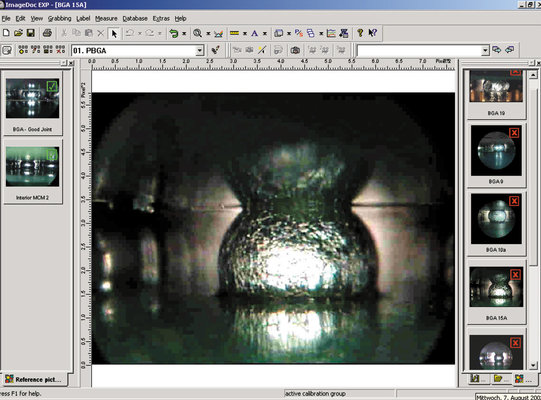

- Includes Ersa ImageDoc v3 inspection software (basic version)
Applications MOBILE SCOPEErsa Optical Inspection
MOBILE SCOPEErsa Optical Inspection
Basic device
Dimensions (LxWxH) mm:
114 x 36 x 51 (without supply cable)
Weight in g:
210
Principle:
integrated optical system with built-in camera and LED light source
Design:
plastic, built-in lens 3 mm image field, integrated light controller (light generation in optics)
Light control:
potentiometer (0-100%)
Backlight properties:
cold light LED illumination (optional), separately hand-guided, with light brush and light intensity adjustment
Focus adjustment:
integrated focus ring on the optics
Connections:
USB 2.0 (USB-A, length 2.5 m), connection flange for MOBILE SCOPE optics
Interchangeable optics 90° BGA module
- Design: integrated zoom optics, stereo illumination via built-in LED light source with plastic fiber optic, prism deflection optics 90°
- Application: Inspection of concealed solder joints with gap dimensions from 50 to 1,500 µm (BGA, PLCC, QFP etc.)
- Total length in mm: 83
- Weight in g: 60
- Magnification: up to 15x - 180x (on 14" monitor)
- Footprint: 8.2 x 0.8 mm
- Focus range: 0.5-30 mm
Interchangeable optics 90° viewing module
- Design: integrated zoom optics, built-in dimmable LED illumination, distance pin with three distance settings
- Application: fast, flexible overhead inspection at high magnification
- Total length in mm: 43 (with telescopic support max. 85)
- Weight in g: 35
- Magnification: 8x - 80x (14" monitor)
- Focus range: 5-200 mm
Inspection camera
- Design: 1/3" N-MOS solid state color image sensor, permanently integrated in MOBILE SCOPE basic device
