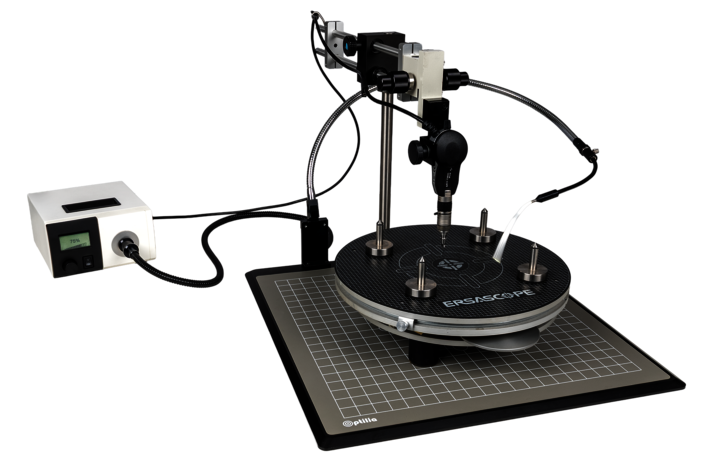

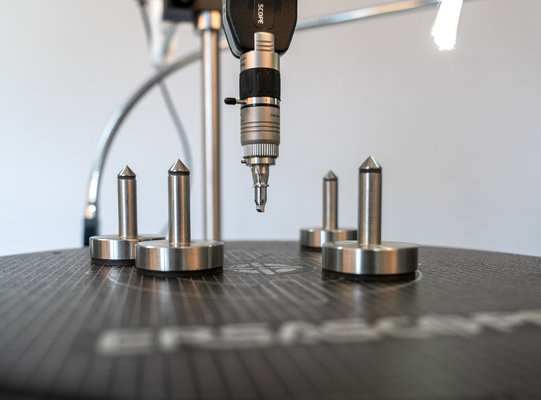

ERSASCOPE X optical inspection system Ersa Optical Inspection
For quick and flexible inspection of hidden solder joints on PCBs

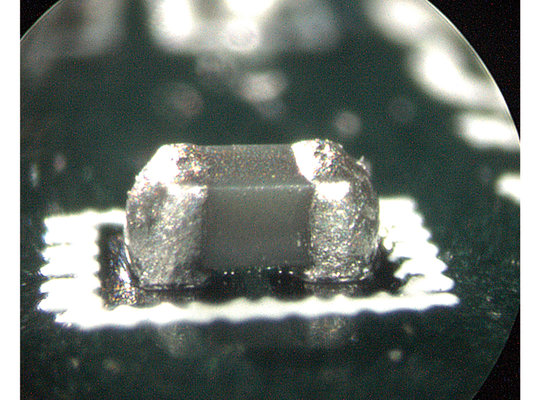

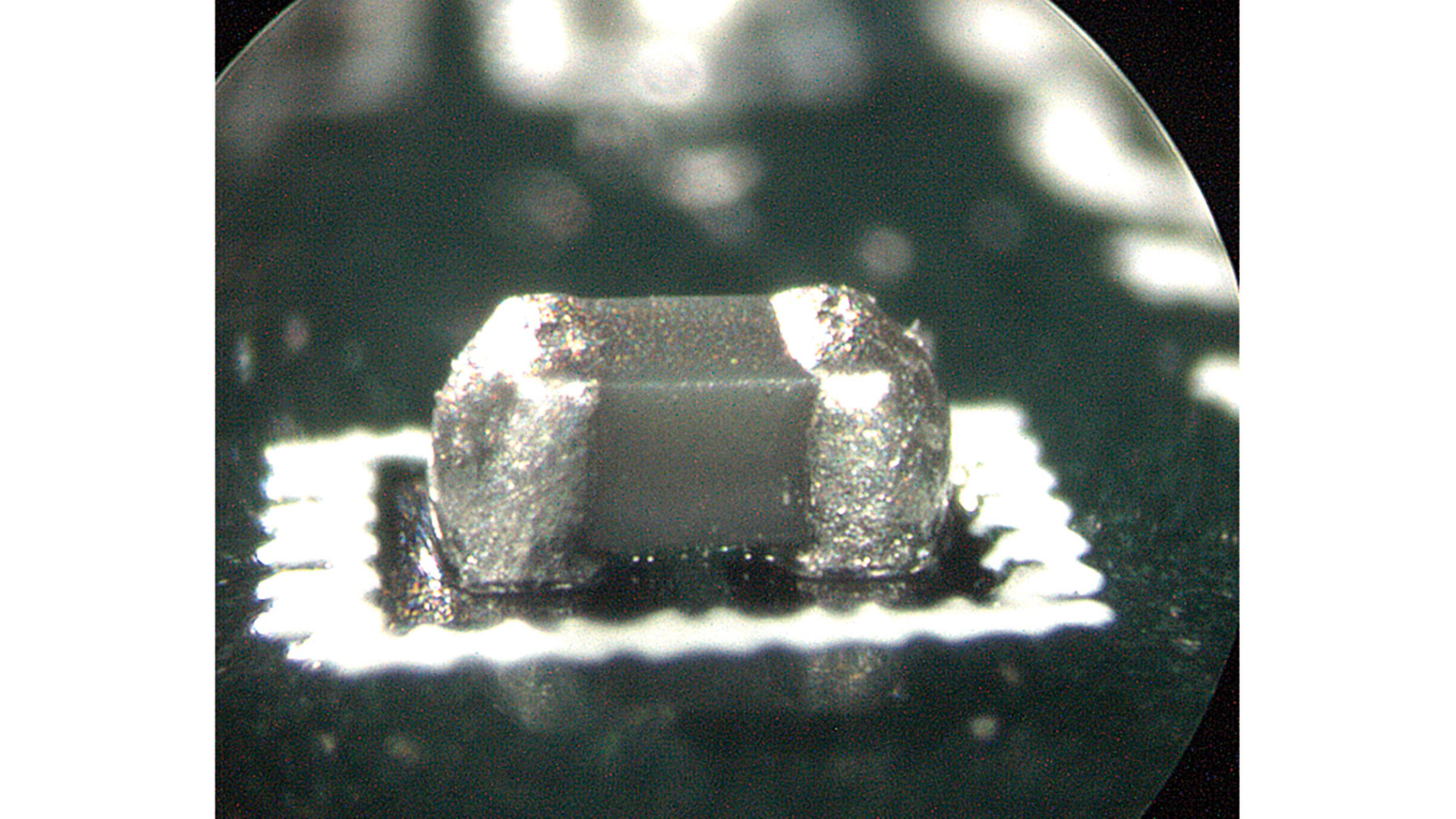

Versatile in use. Developed for optical inspection and digital image capture - including measurement of solder joints on BGAs and other SMT components. The field of application includes the visual inspection of components on PCBs in SMT or THT in general, but also the visual inspection of PCB surfaces or solder paste prints.
Technical HighlightsERSASCOPE X

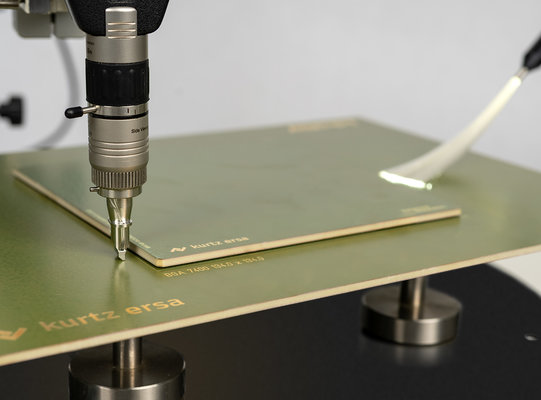

- Inspection system with two quick-change objectives:
- 90° BGA optics (approx. 280 µm gap)
- 0° macrozoom inspection lens
- Integrated, dimmable LED lighting
- N-MOS color camera 5 megapixel, with USB connection
- Additional LED light source with gooseneck and light fan
AdvantagesERSASCOPE X
- Fast inspection of concealed solder joints
- Ideal for stationary inspection

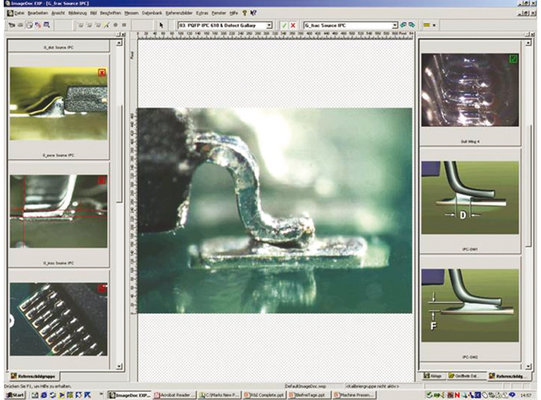

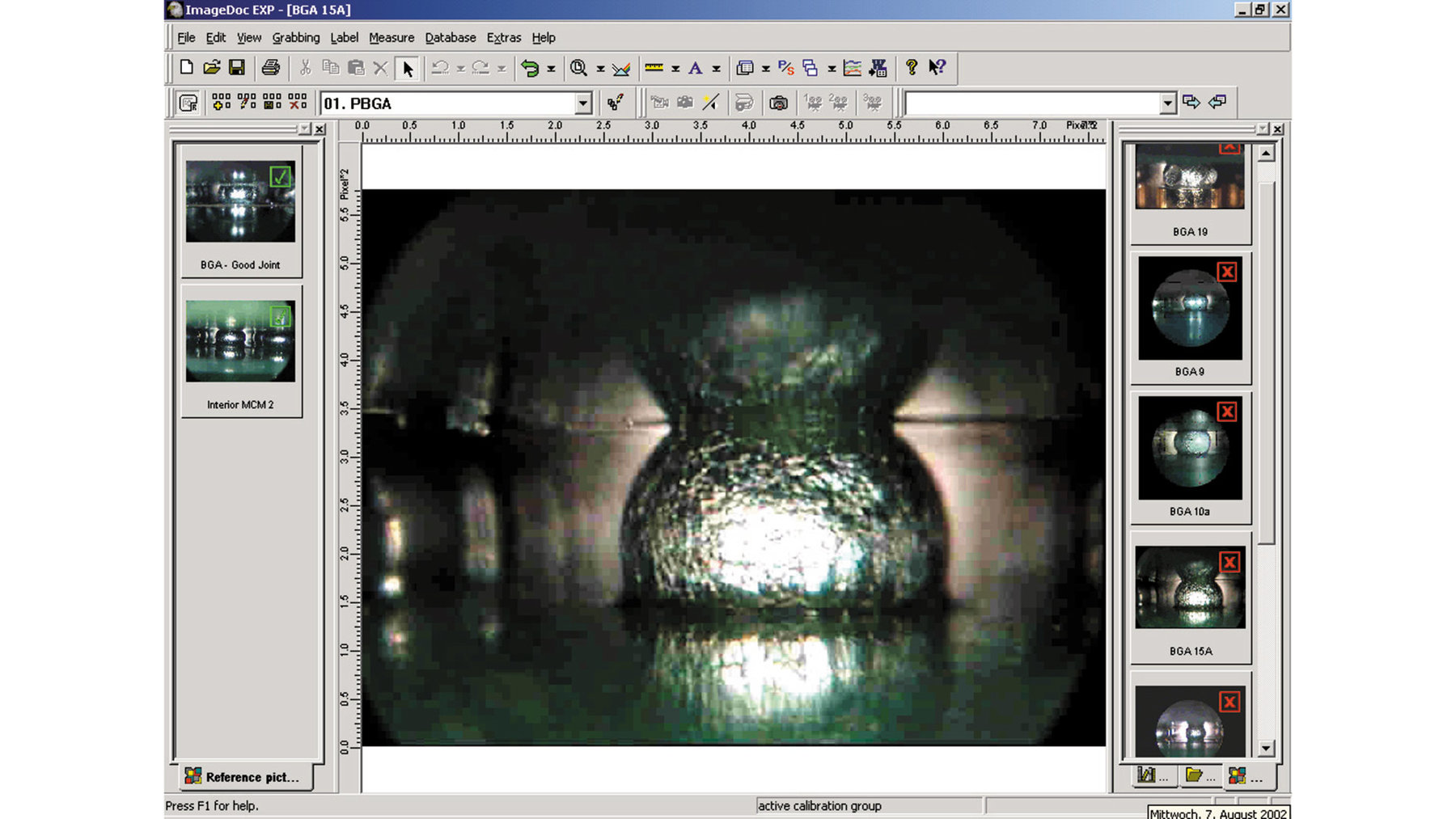

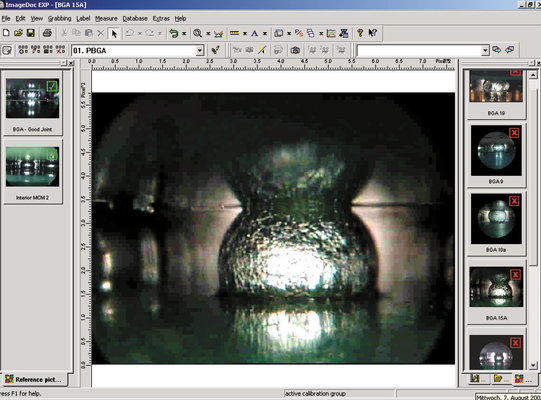

- Includes Ersa ImageDoc v3 inspection software (basic version)

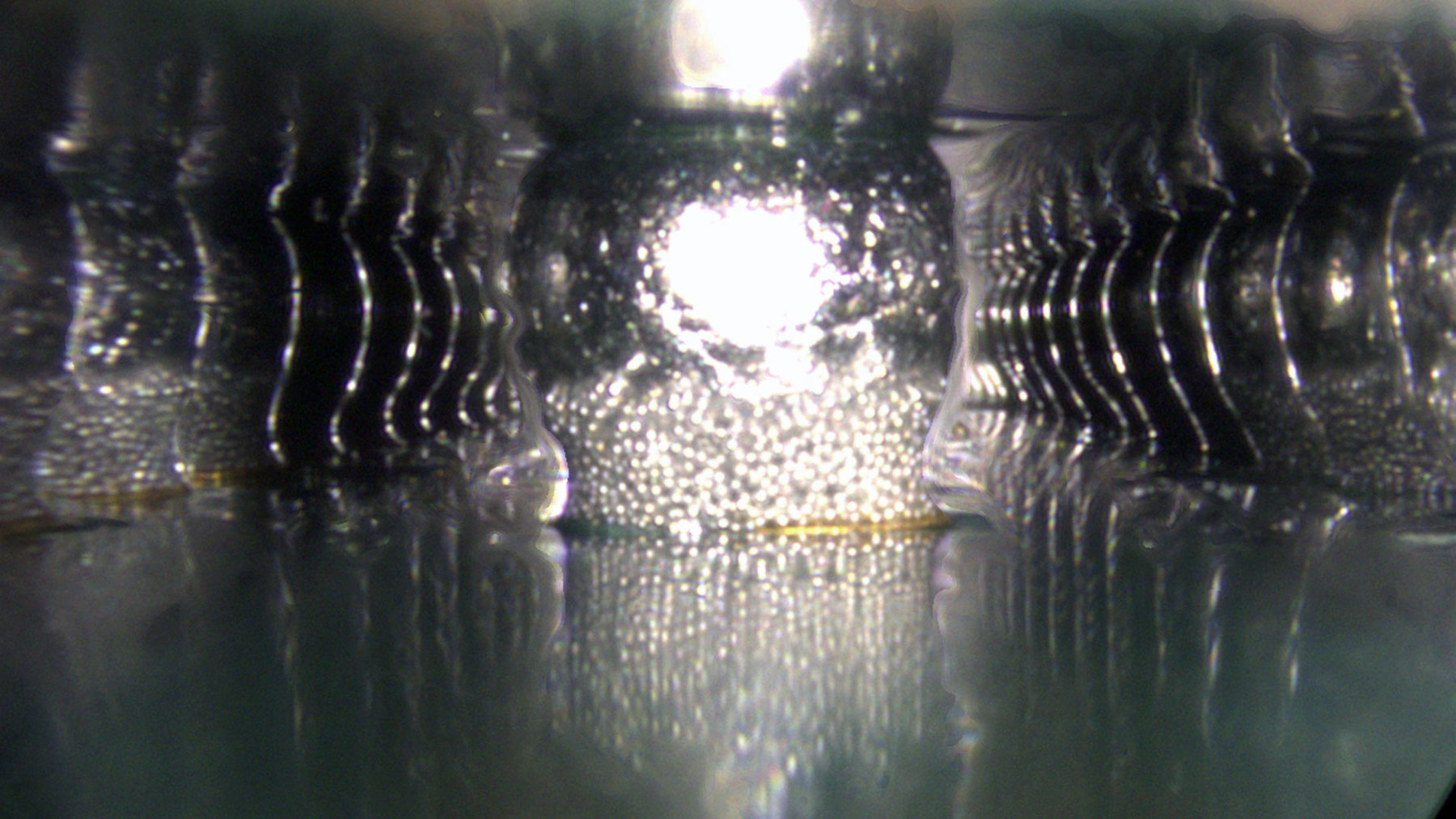

Applications ERSASCOPE XErsa Optical Inspection

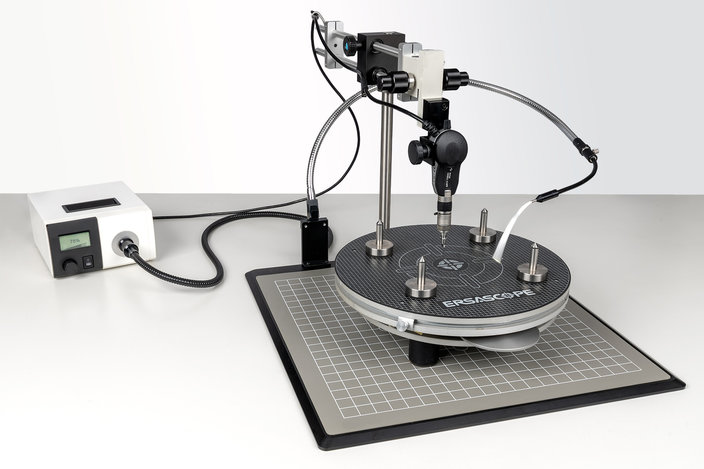

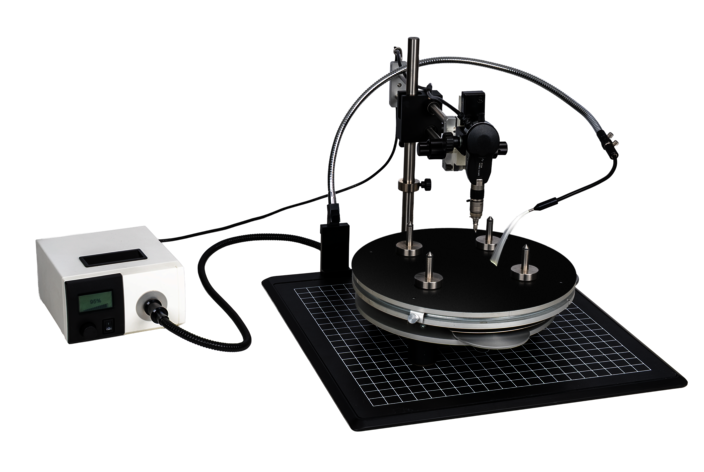

ERSASCOPE XErsa Optical Inspection

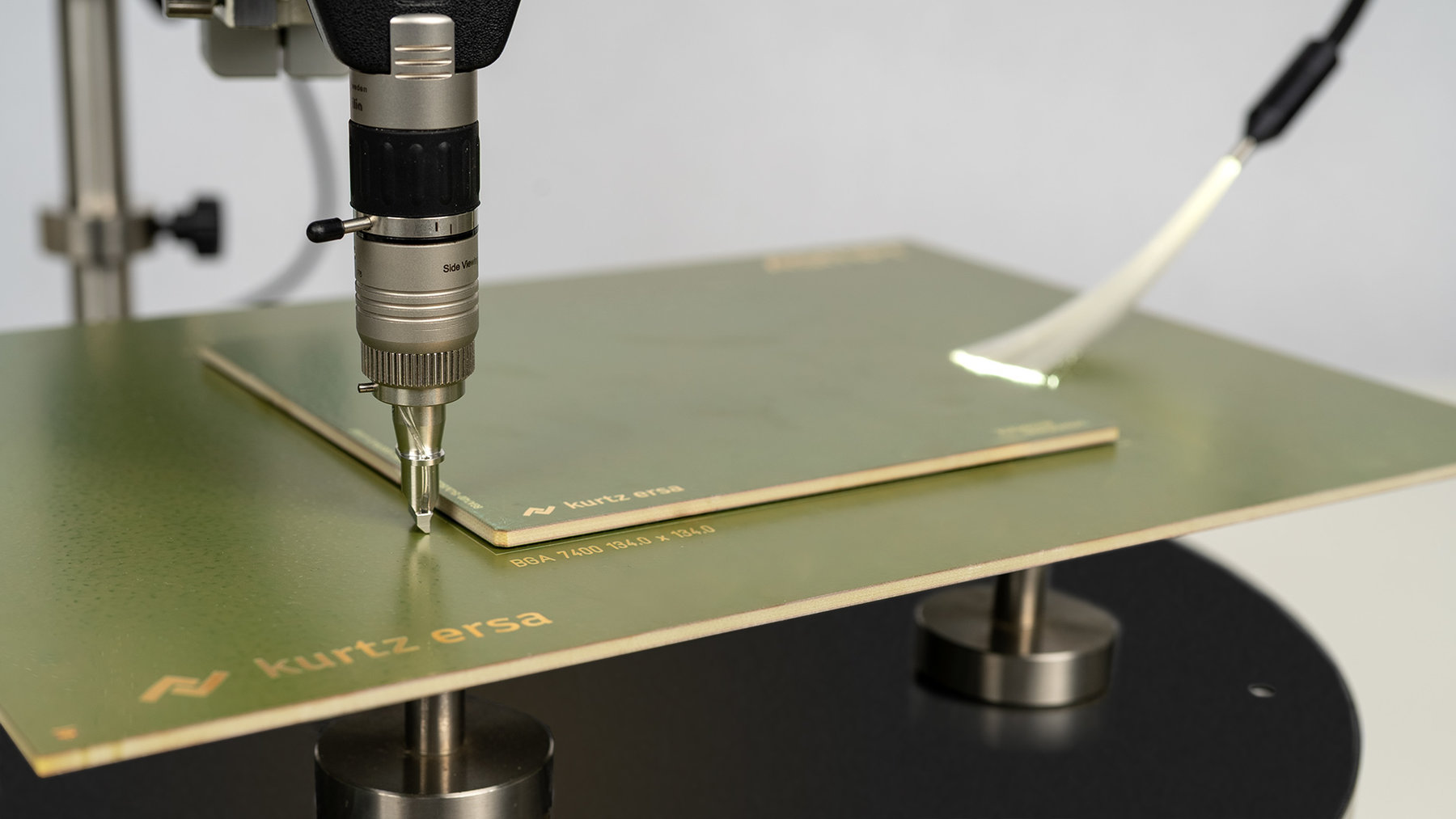

ERSASCOPE tripod
Dimensions (LxWxH) in mm:
480 x 550 x 400
Weight in kg:
ca. 9
Principle:
Aluminum, stainless steel, plastic, height-adjustable, swiveling, extendable; Z-axis with fine adjustment and mount for basic camera unit
Antistatic version (y/n):
yes
Connections:
15 mm for light source, gooseneck light guide with light brush
MOBILE SCOPE basic device
- 1/3" N-MOS solid-state color image sensor
- Resolution 5.0 MP
- Dimensions (LxWxH) in mm: 114 x 36 x 51 (without cable)
- Weight in g: approx. 210
- Principle: integrated optical system with built-in camera and LED light source
- Design: plastic, built-in lens 3 mm image field, integrated light controller (light generation in optics)
- Light control: potentiometer (0-100%)
- Focus adjustment: integrated focus ring on the optics
- Connections: USB 2.0 (USB-A, length 2.5 m), connection flange for MOBILE SCOPE optics

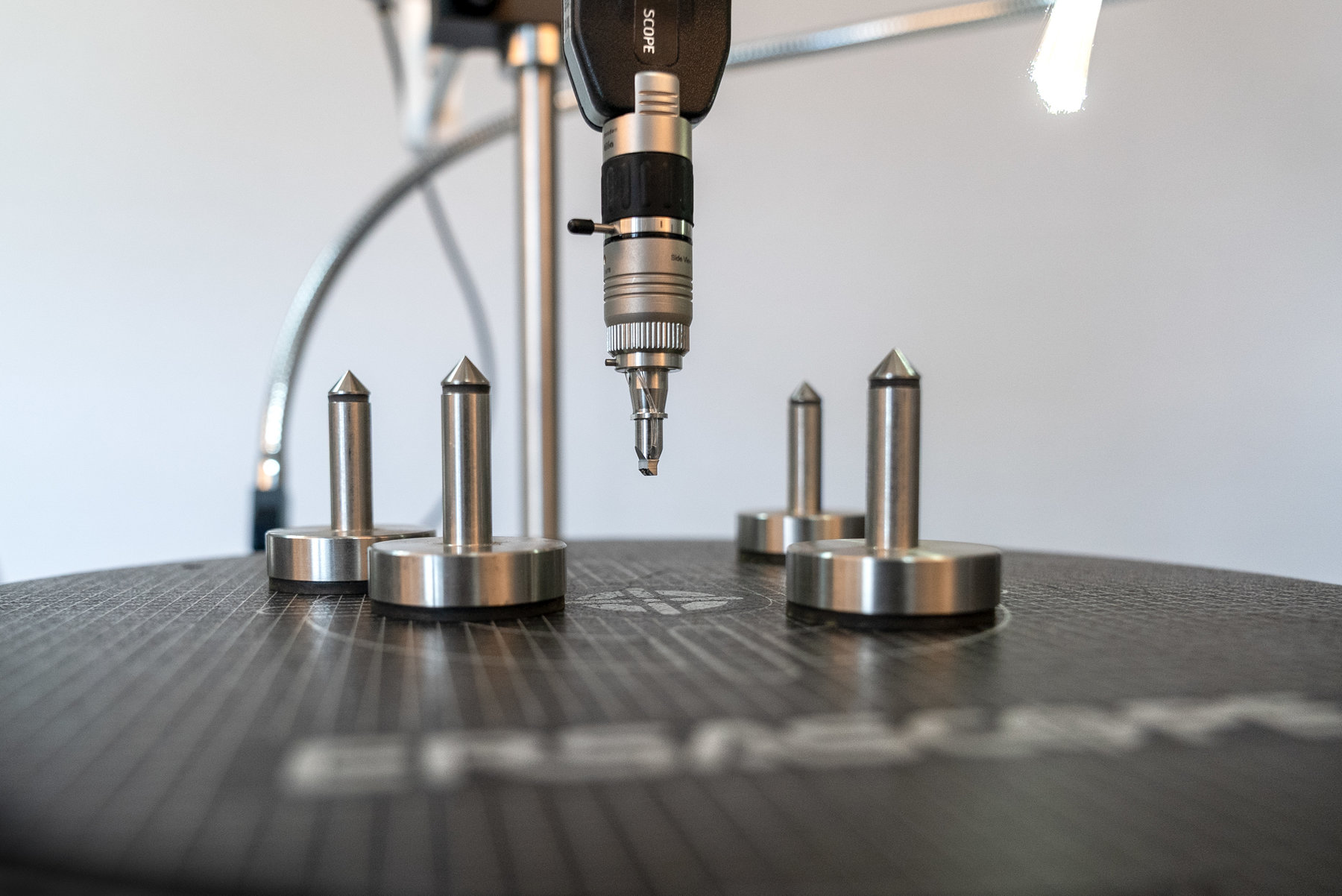

X/Y inspection table
... with fine adjustment and 4 PCB feet
- Diameter 320 mm
- Weight in kg: approx. 5
LED light source
- ... adjustable
- Dimensions (W x H x D) approx. 170 x 196 x 98 mm
- Weight in kg: approx. 2.1
