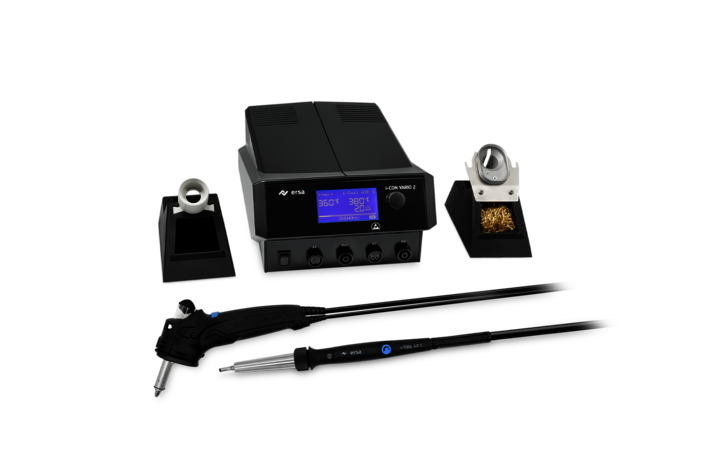

i-CON VARIO 2 MK2 Ersa Soldering Station
electronically temperature-controlled multichannel soldering and desoldering station, 350 W
Hot air and conductive heat - professional two channel solution
The i-CON VARIO 2 is perfectly suited for all SMT und PTH soldering applications in electronic production, rework and touch-up as well es in R&D. Especially suited for SMT soldering and desoldering are: the hot air tool i-TOOL AIR S and the desoldering tweezers CHIP TOOL VARIO.The range of application includes smallest SMD chips (0201), all kinds of standard SMD components up to high pin count components like PLCC 84 and high mass solder joints in PTH technology including their desoldering with a solder succing device.
Highlights i-CON VARIO 2 MK2Ersa Soldering Station
- Soldering and desoldering station to operate one i-TOOL AIR S and another soldering tool at the same time
- Intelligent power management for dynamic power distribution
- Extremly silent blow air supply for i-TOOL AIR S
- Built in vacuum pump for desoldering tools
- Easy operation - intuitive one touch push button and large multifunctional display
- Different soldering and desoldering tools connectable
- Integrated interface to solder fume extraction unit, heating plate and PC
- USB interface
- Antistatic design

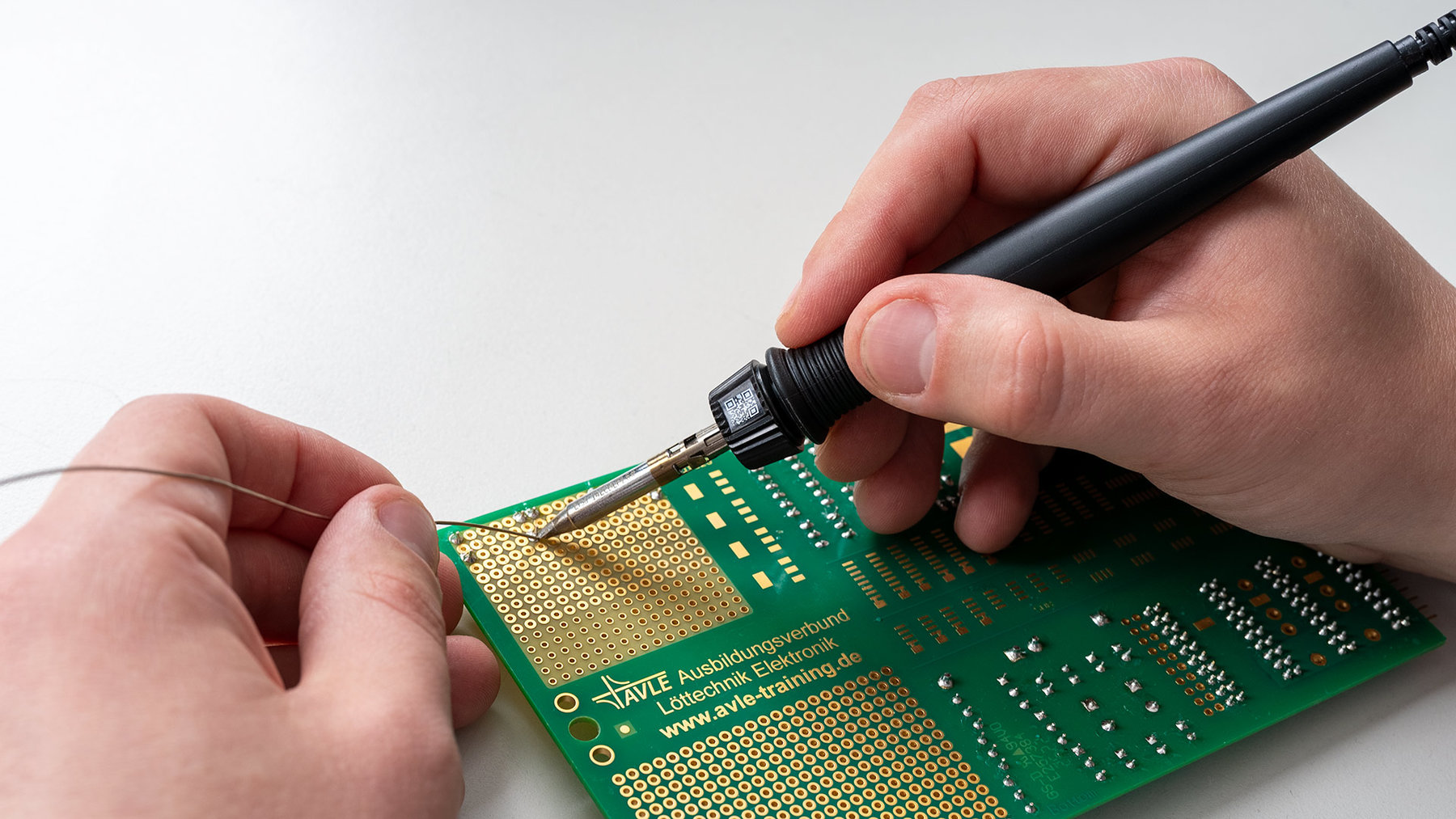

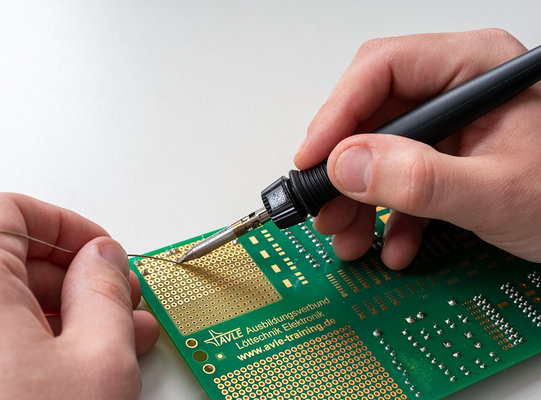

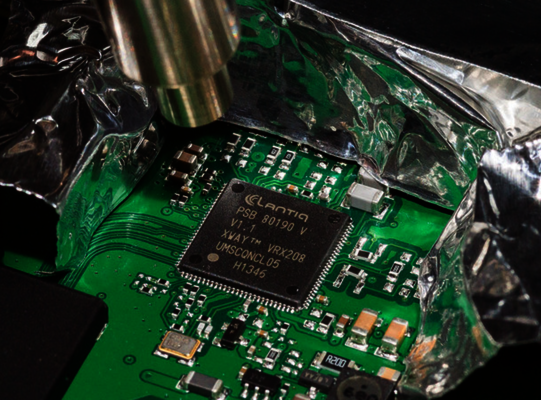

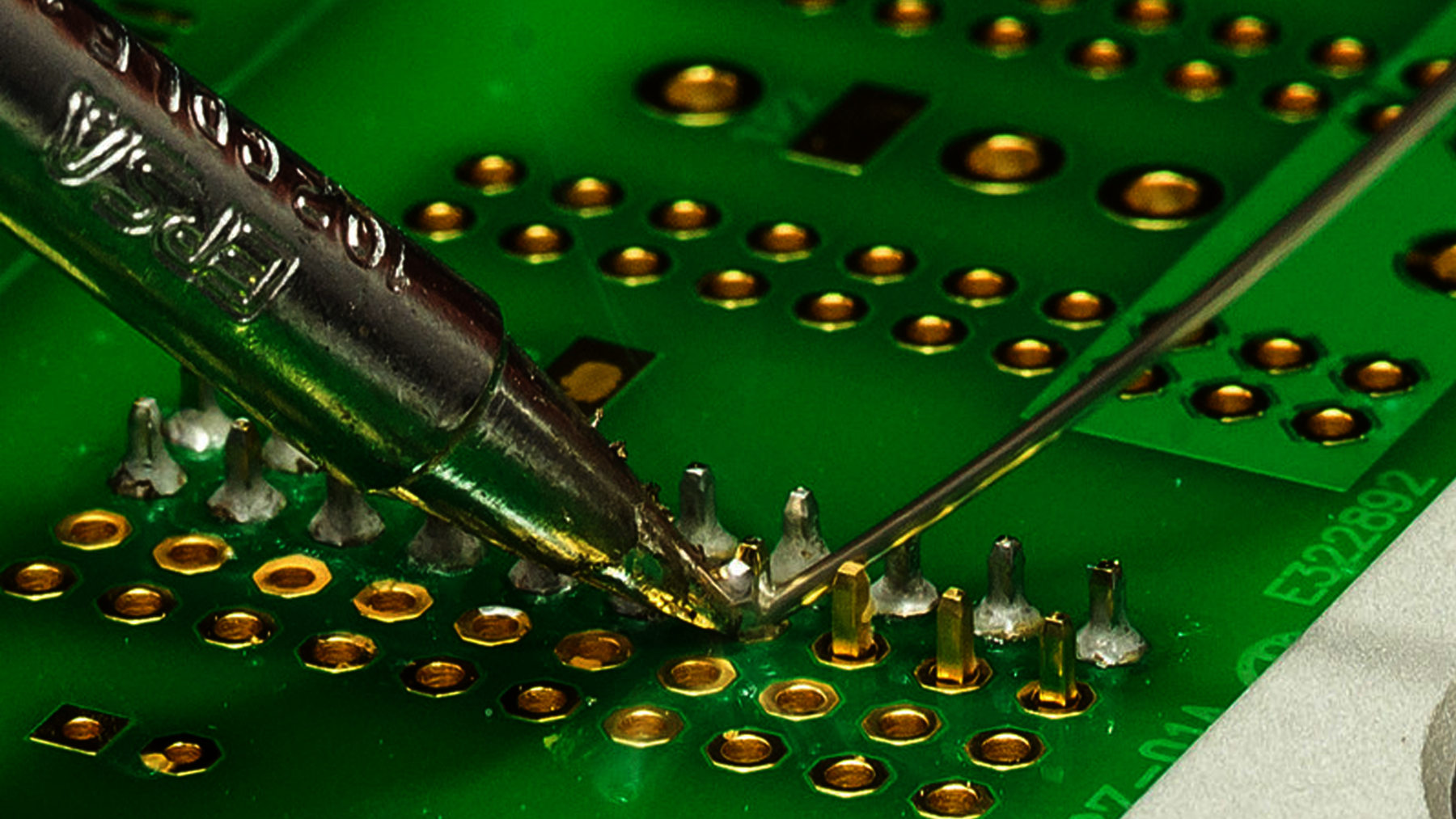

Applications i-CON VARIO 2 MK2Ersa Soldering Station
Videosi-CON VARIO 2 MK2

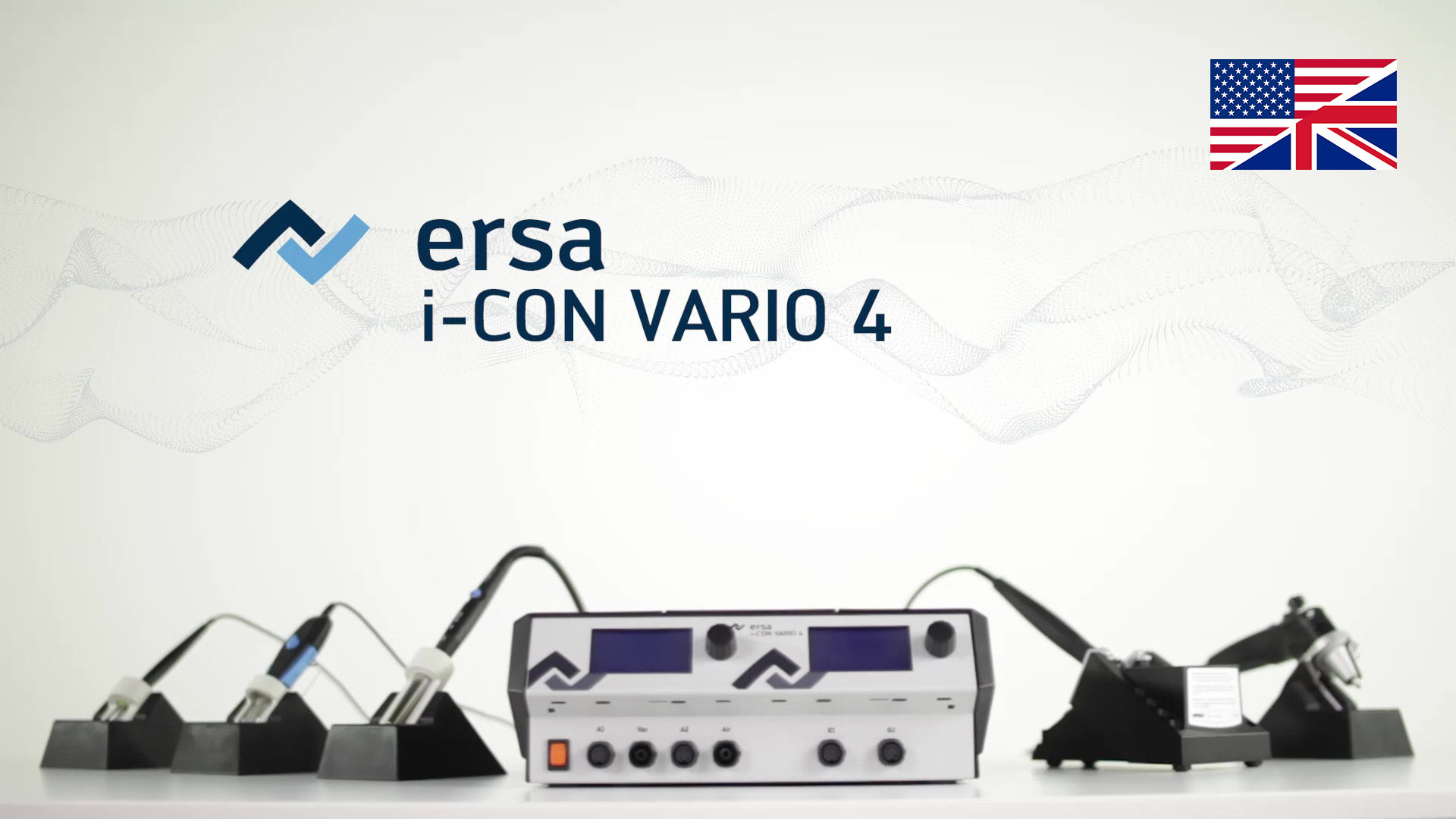

Ersa i-CON VARIO 4 MK2 soldering station - easy soldering and desoldering
Ersa i-CON VARIO 4 MK2 soldering station - easy soldering and desoldering
Ersa MK2 Lötkolben mit Tip’n‘Turn – Spitzenwechsel so einfach wie nie!
Ersa MK2 Lötkolben mit Tip’n‘Turn – Spitzenwechsel so einfach wie nie!
i-CON VARIO 2 MK2Ersa Soldering Station
Technical Data
Dimensions (W x D x H) in mm:
180 x 280 x 115
Weight in kg:
6,0
Antistatic Design (y/n):
y
Power Rating in W:
200
Power consumption standby in W:
25
Nominal voltage in V AC:
230
Secondary voltage in V:
24
Temperature range in °C:
150-450 and 50-550 (i-TOOL AIR S)
Volume flow in l/min:
2-20
Digital display (y/n):
y
Test symbol:
CE, VDE
Connectable
Article-No.:
Description
0105CDJ:

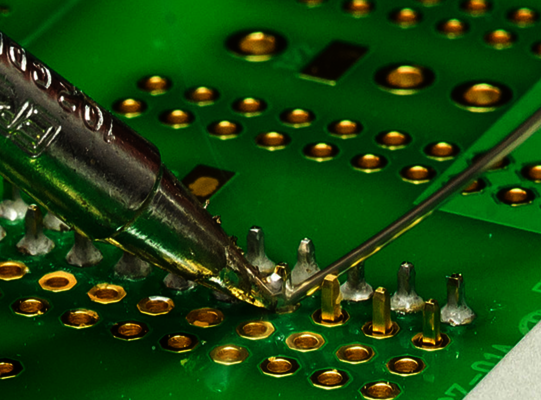

i-TOOL MK2, powerful fine soldering iron for i-CON MK2 soldering stations, 150 W
0470ERJ:

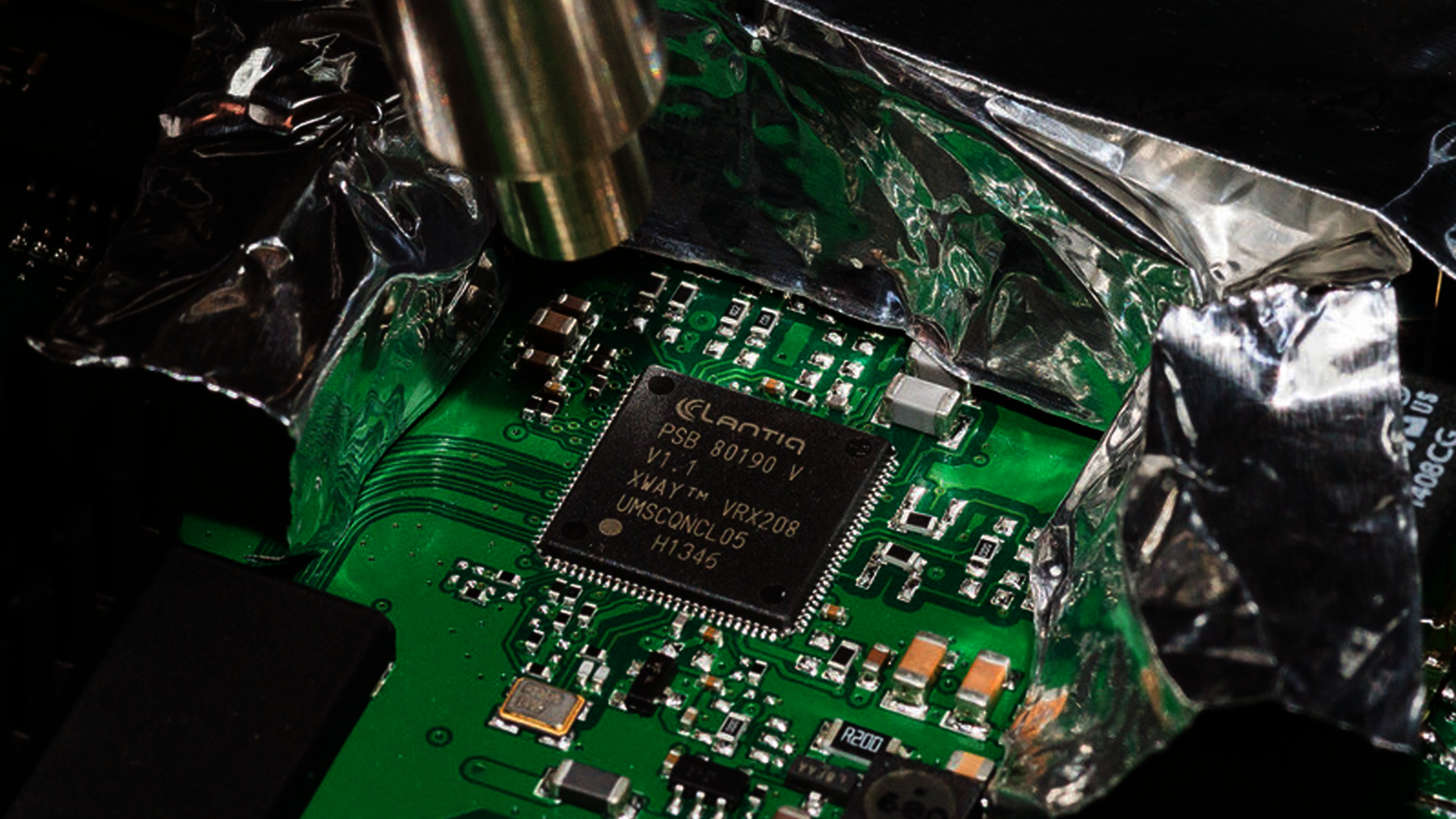

i-TOOL AIR S, hot air gun with precise temperature control and sensitive air volume regulation, 200 W
0460MDJ:

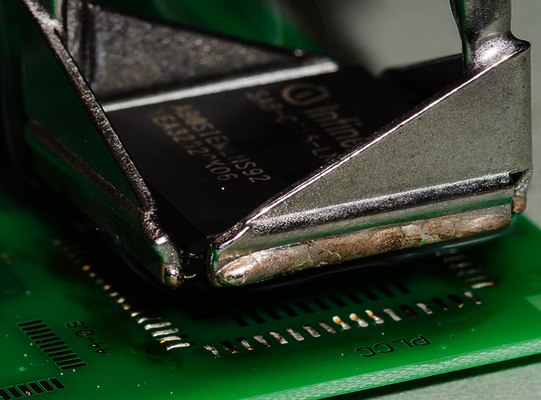

CHIP TOOL VARIO, handy, powerful desoldering tweezers, 2 x 40 W
0740EDJ:

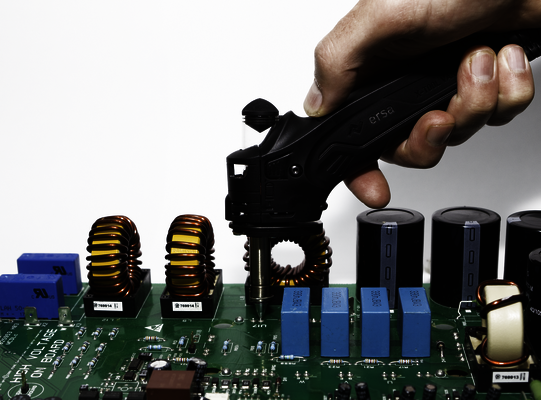

X-TOOL VARIO, ergonomic desoldering iron for THT components, 150 W
0240CDJ:
i-TOOL HIGH POWER, high-performance soldering iron for i-CON VARIO stations, 250 W
0450MDJ:
CHIP TOOL, ergonomic desoldering tweezers, 2 x 20 W
0ICV207:
VARIO TOOL adapter
Available Versions
Article-No.:
Description
0ICV2005A:
i-CON VARIO 2 MK2 with i-TOOL AIR S
0ICV2005AC:
i-CON VARIO 2 MK2 with i-TOOL AIR S and CHIP TOOL VARIO
0ICV2005AI:
i-CON VARIO 2 MK2 with i-TOOL AIR S and i-TOOL MK2
0ICV2005AXV:
i-CON VARIO 2 MK2 with i-TOOL AIR S and X-TOOL VARIO
0ICV2005HP:
i-CON VARIO 2 MK2 with i-TOOL HP
0ICV2005XV:
i-CON VARIO 2 MK2 with X-TOOL VARIO
0ICV2005XVI:
i-CON VARIO 2 MK2 with X-TOOL VARIO and i-TOOL MK2
0ICV2035A:
Control station i-CON VARIO 2 MK2 without Tool
Accessories
Article-No.:
Description
0A58:
Holder, antistatic
E074600:
Service tool VARIO TOOL
