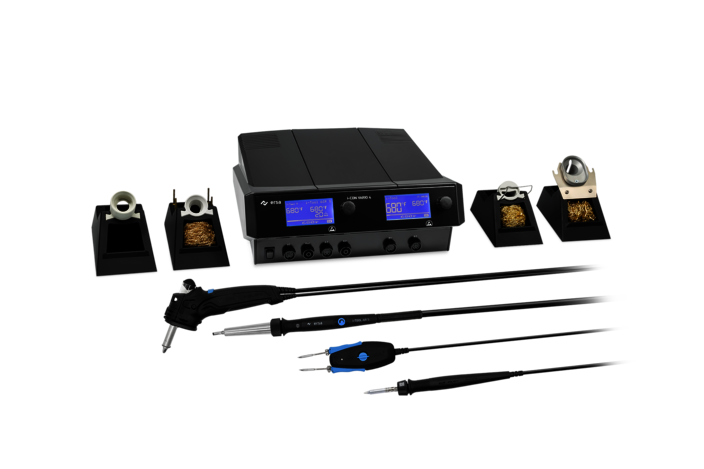

i-CON VARIO 4 MK2 Ersa Soldering Station
electronically temperature-controlled multichannel soldering and desoldering station, 500 W
Perfect touch-up workplace: 4 soldering tools ready to operate!
The i-CON VARIO 4 MK2 is perfectly suited for all SMT und PTH soldering applications in electronic production, rework and touch-up as well es in R&D. Especially suited for SMT soldering and desoldering are: the hot air tool i-TOOL AIR S and the desoldering tweezers CHIP TOOL VARIO.The range of application includes smallest SMD chips (0201), all kinds of standard SMD components up to high pin count components like PLCC 84 and high mass solder joints in PTH technology including their desoldering with a solder succing device.
Highlights i-CON VARIO 4 MK2Ersa Soldering Station
- Soldering and desoldering station to operate one i-TOOL AIR S and three other soldering tools at the same time
- Intelligent power management for dynamic power distribution
- Extremly silent blow air supply for i-TOOL AIR S
- Built in vacuum pump for desoldering tools
- Easy operation - intuitive one touch push button and two large multifunctional displays
- Different soldering and desoldering tools connectable
- Integrated interface to solder fume extraction unit, heating plate and PC
- USB interface
- Antistatic design

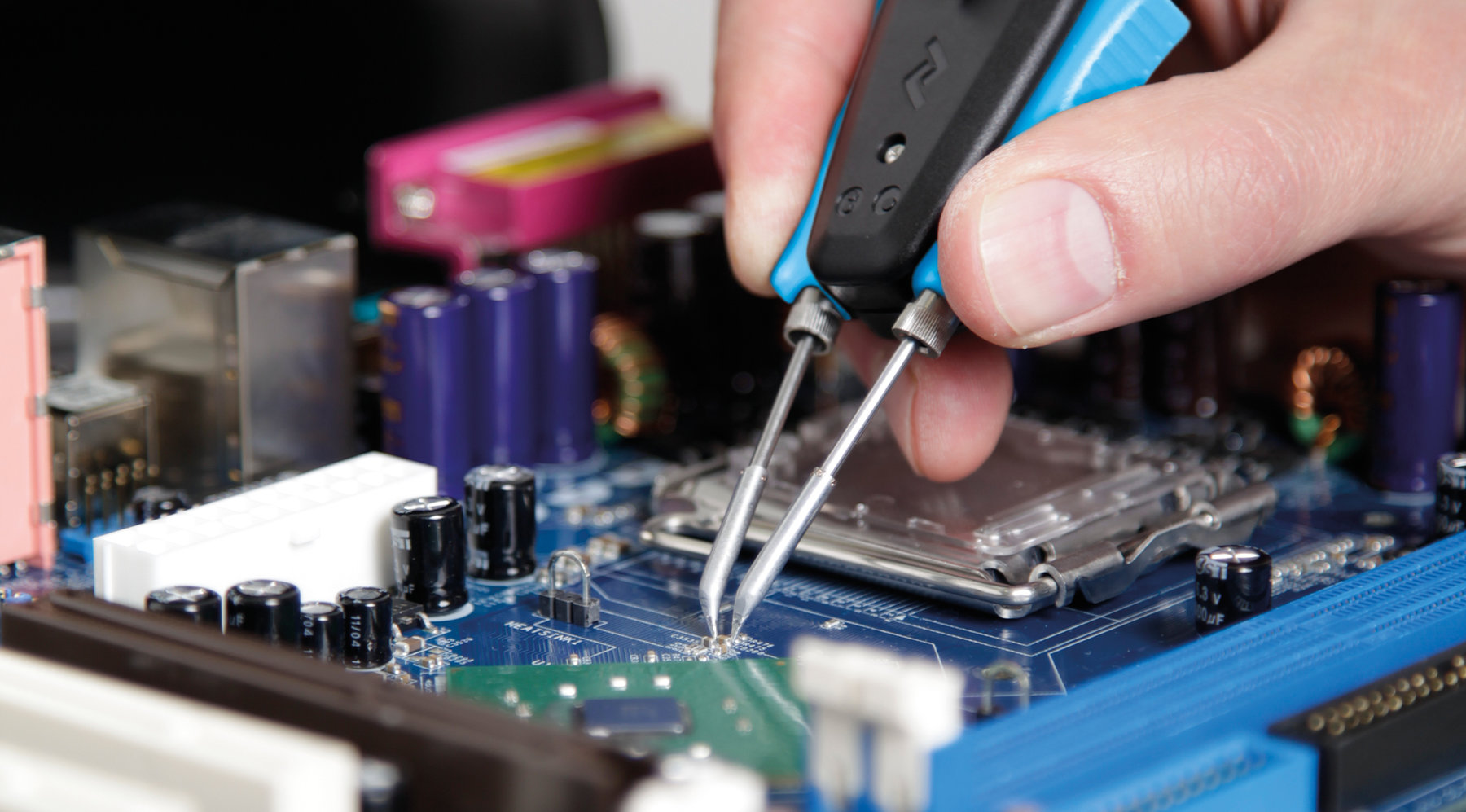

Applications i-CON VARIO 4 MK2Ersa Soldering Station
VideosErsa i-CON VARIO 4 MK2

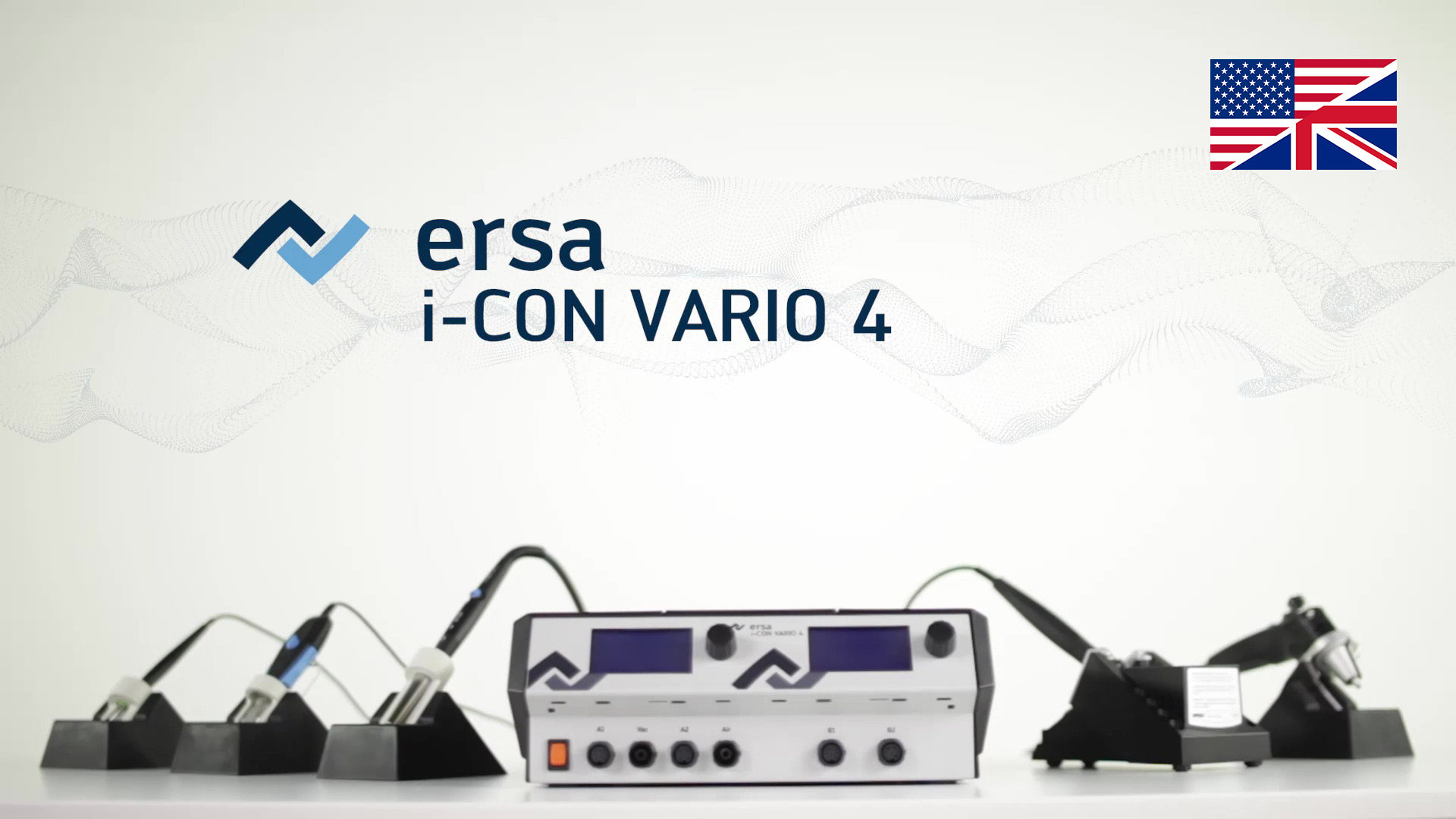

Ersa i-CON VARIO 4 MK2 soldering station - easy soldering and desoldering
Ersa i-CON VARIO 4 MK2 soldering station - easy soldering and desoldering

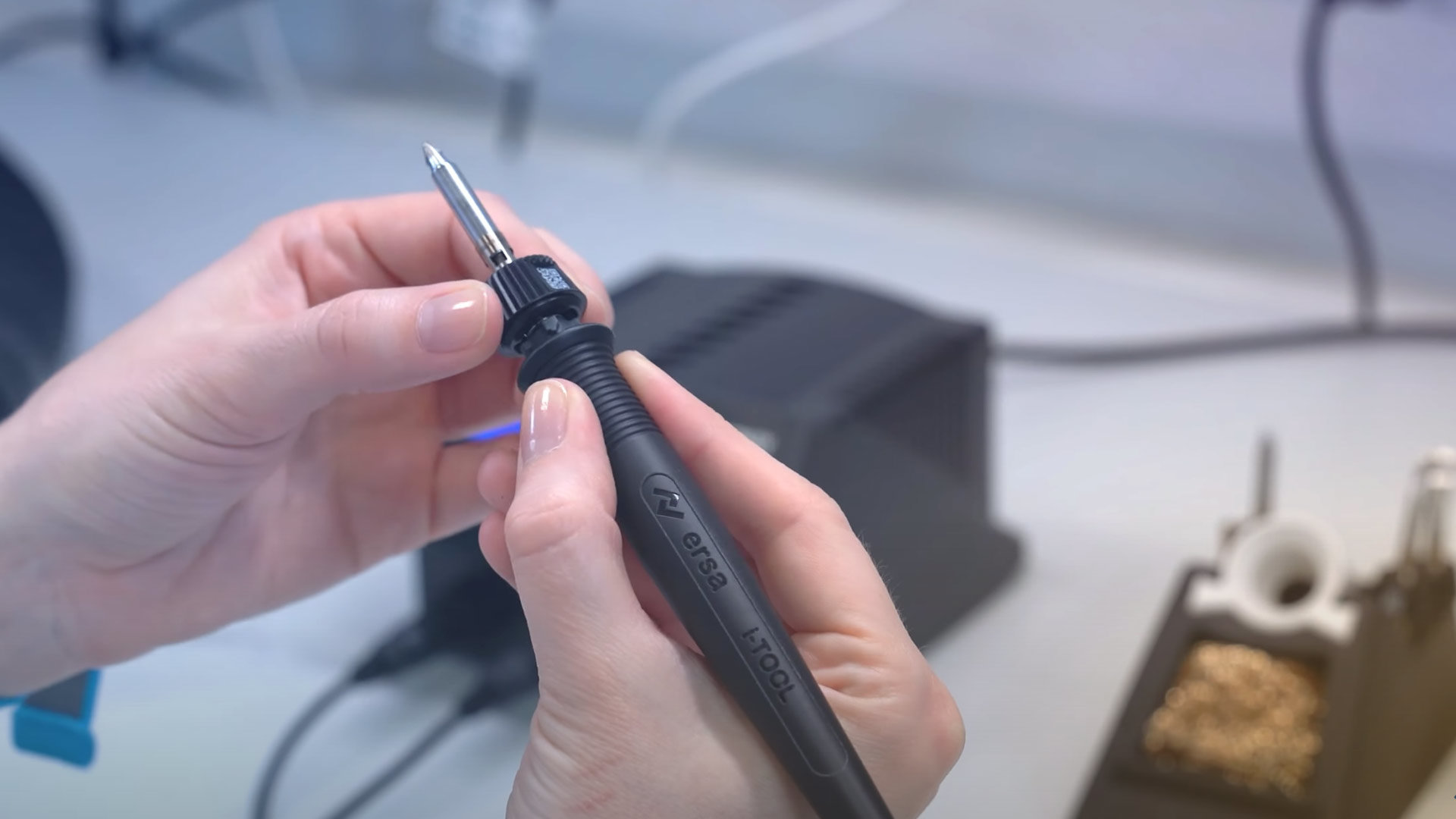

Ersa MK2 soldering iron with Tip'n'Turn - tip change easier than ever!
Ersa MK2 soldering iron with Tip'n'Turn - tip change easier than ever!
i-CON VARIO 4 MK2Ersa Soldering Station
Technical Data
Dimensions (W x D x H) in mm:
300 x 280 x 115
Weight in kg:
10,0
Antistatic Design (y/n):
y
Power Rating in W:
360
Nominal voltage in V AC:
230
Secondary voltage in V:
24
Temperature range in °C:
150-450 and 50-550 (i-TOOL AIR S)
Volume flow in l/min:
2-20
Digital display (y/n):
y
Test symbol:
CE, VDE
Power consumption standby in W:
52
Connectable
Article.-No.:
Description
0105CDJ:

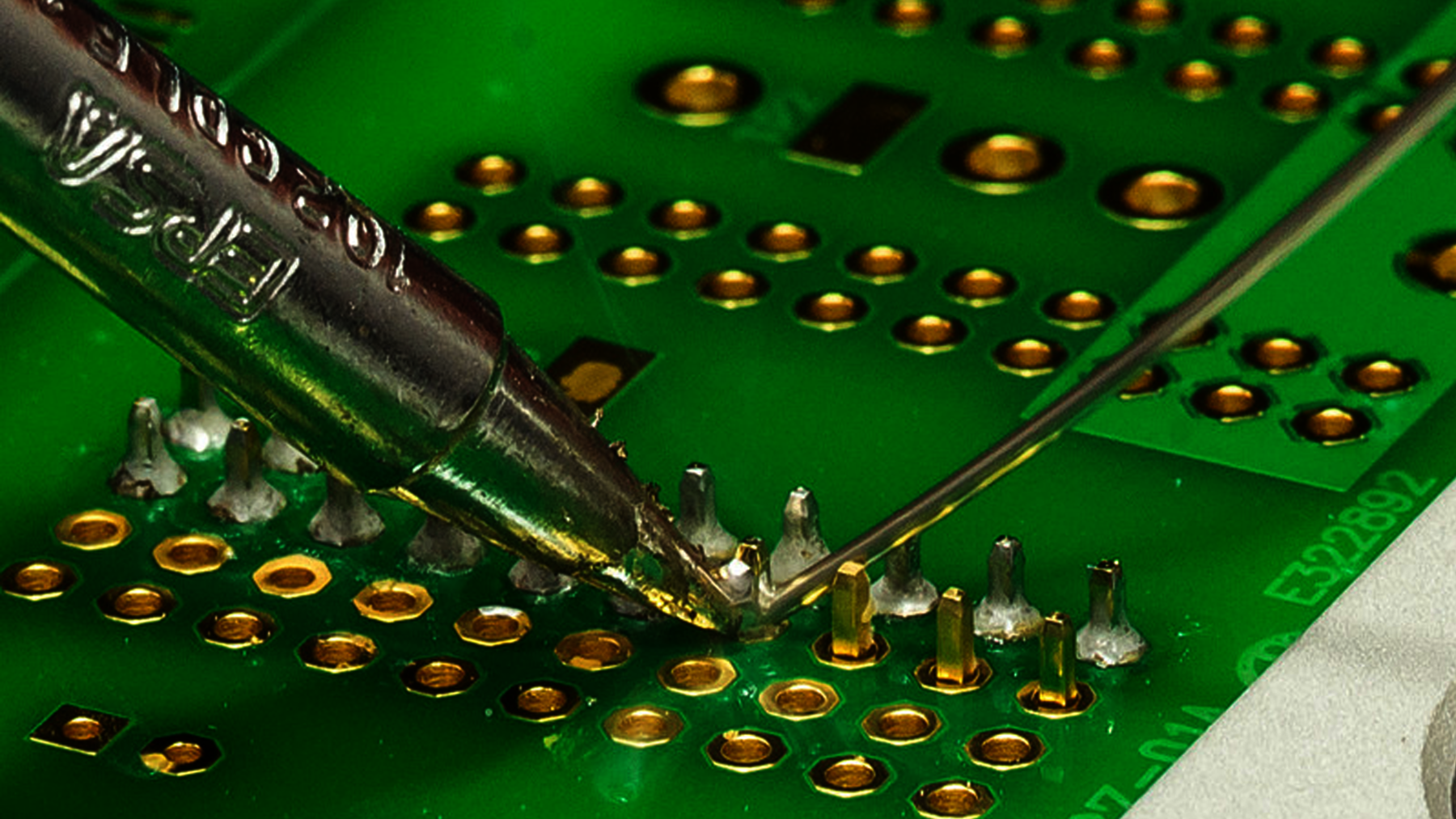

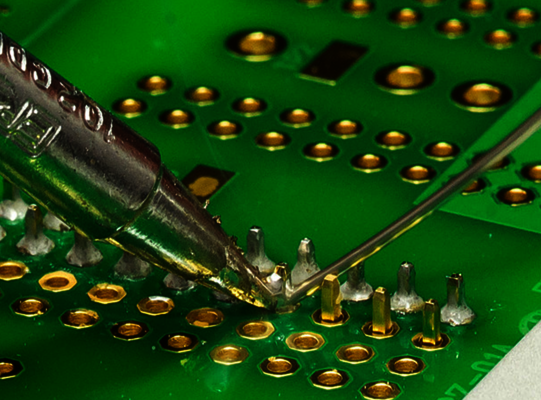

i-TOOL MK2, powerful fine soldering iron for i-CON MK2 soldering stations, 150 W
0470ERJ:

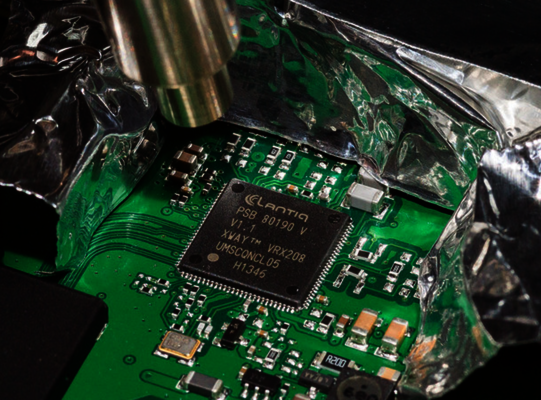

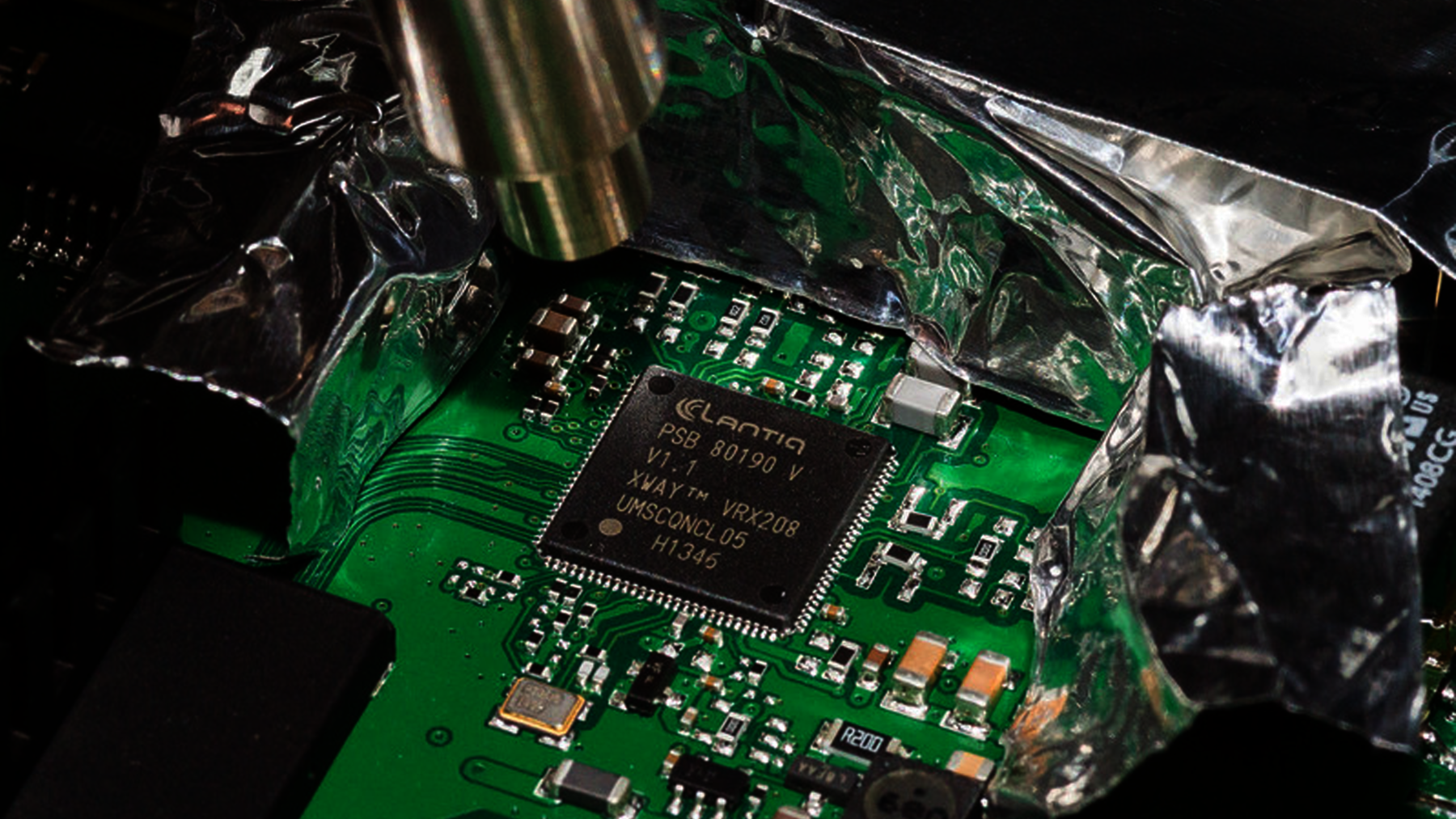

i-TOOL AIR S, hot air gun with precise temperature control and sensitive air volume regulation, 200 W
0460MDJ:

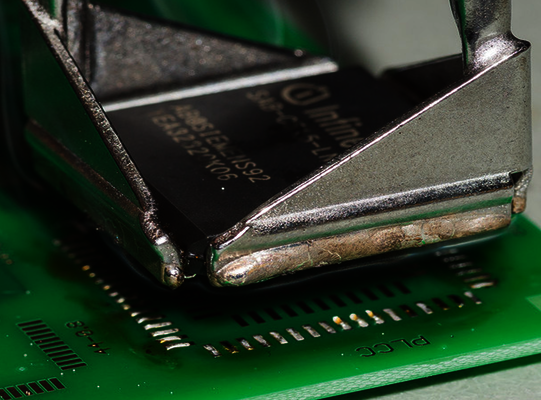

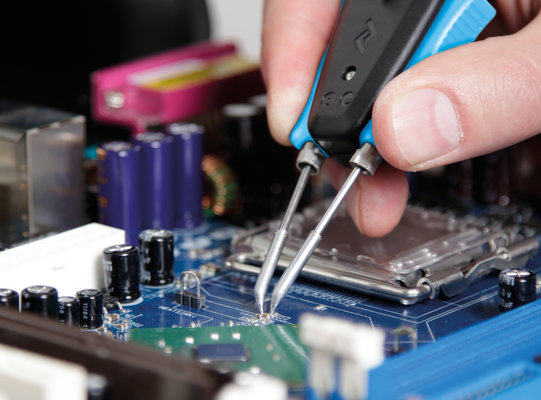

CHIP TOOL VARIO, handy, powerful desoldering tweezers, 2 x 40 W
0740EDJ:

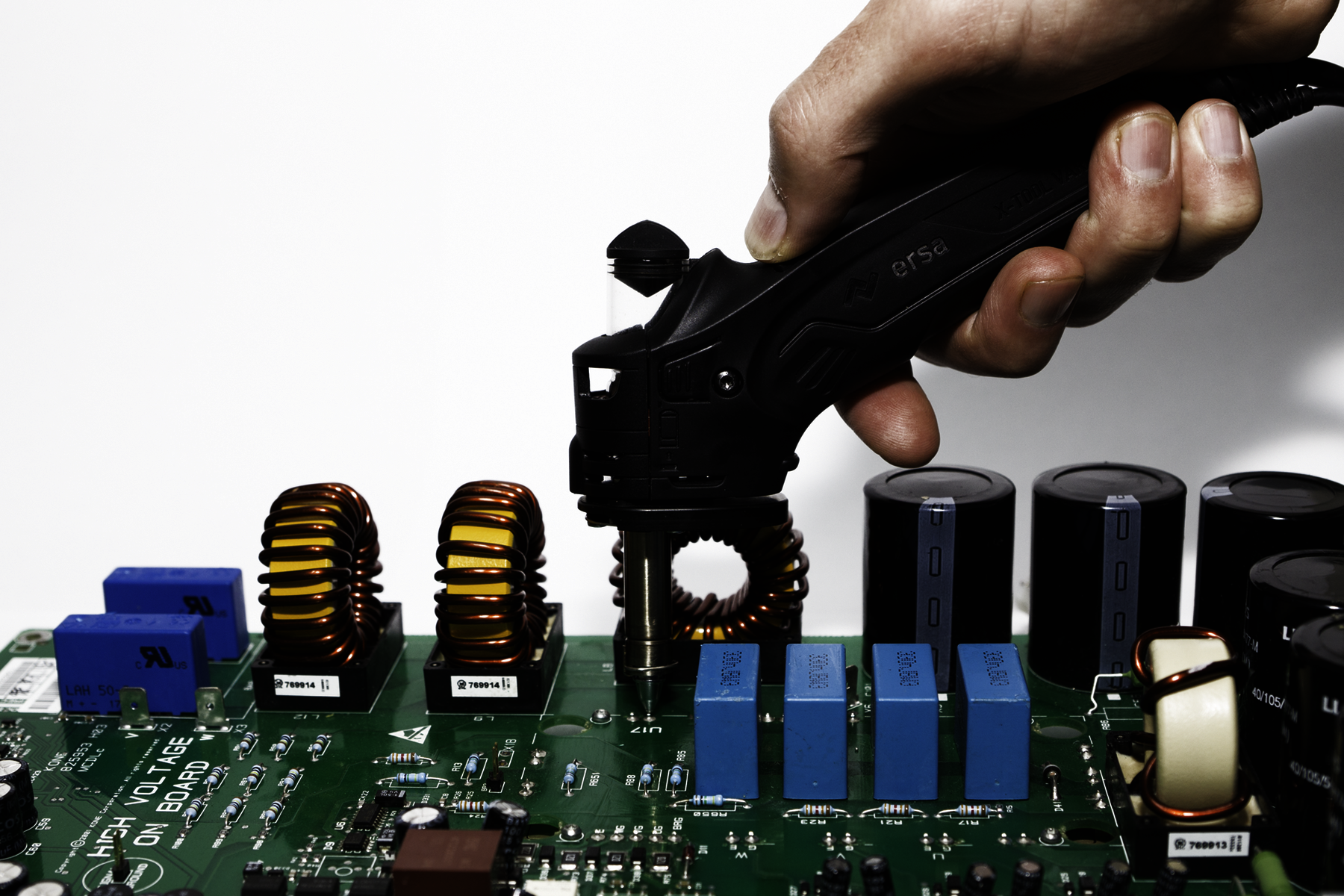

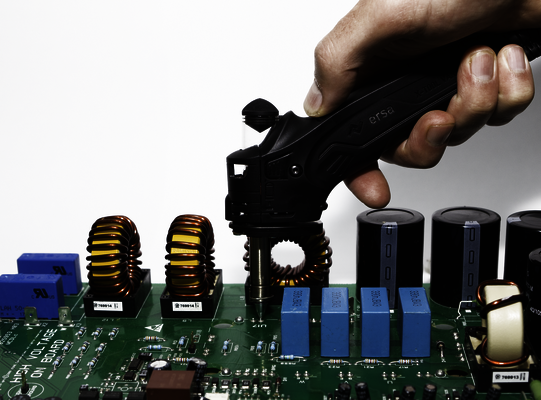

X-TOOL VARIO, ergonomic desoldering iron for THT components, 150 W
0240CDJ:
i-TOOL HIGH POWER, high-performance soldering iron for i-CON VARIO stations, 250 W
0450MDJ:
CHIP TOOL, ergonomic desoldering tweezers, 2 x 20 W
0ICV207:
VARIO TOOL adapter
Available Versions
Article.-No.:
Description
0ICV4005AI:
i-CON VARIO 4 MK2 with i-TOOL AIR S and i-TOOL MK2
0ICV4005AIC:
i-CON VARIO 4 MK2 with i-TOOL AIR S, i-TOOL MK2 and CHIP TOOL VARIO
0ICV4005AICXV:
i-CON VARIO 4 MK2 with i-TOOL AIR S, i-TOOL MK2, CHIP TOOL VARIO and X-TOOL VARIO
0ICV4035A:
Control station i-CON VARIO 4 MK2 without tool
Accessories
Article-No.:
Description
0A58:
Holder, antistatic
E074600:
Service tool VARIO TOOL
0ICV207:
VARIO TOOL adapter
