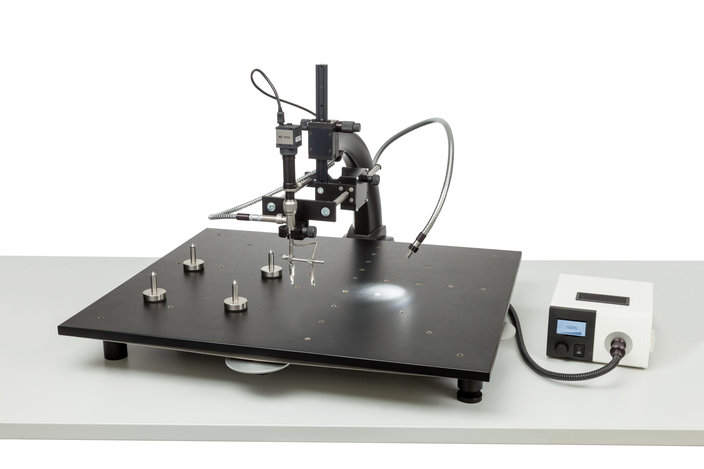

ERSASCOPE 2 XL (discontinued)

  • High-end endoscope inspection system including three quick change heads:

- 90° BGA head (approx. 280 µm clearance)
- 90° Flip Chip head (approx. 30 µm clearance)
- 0° wide angle head, e.g. for VIA inspection without tilting of optics

  • 6 Movement axes for flexible adjustment to

practically every required viewing angle

  • High-performance, dimmable LED lighting in daylight colour
  • High quality 1.3 megapixel CCD colour camera with USB connection
  • XY table in XL version with fine adjust wheels, freely positionable under the optics
  • Optics extraction unit for the inspection of front components on particularly deep PCBs
  • Optimal light management:

- inspection heads with fibre optic stereo front light
- mechanically coupled, swivelling and rotating backlight
- fibre optic gooseneck for targeted lighting from all sides
- separate setting of light quantity for all light guides
- with light brushes, light extension and iris aperture

  • Focusing scale to be used with calibration groups in the ImageDoc EXP measuring function
  • Complete set with the most important accessories and storage case
