Ersa Rework
High-performance, universal IR rework system with semi-automatic component placement.

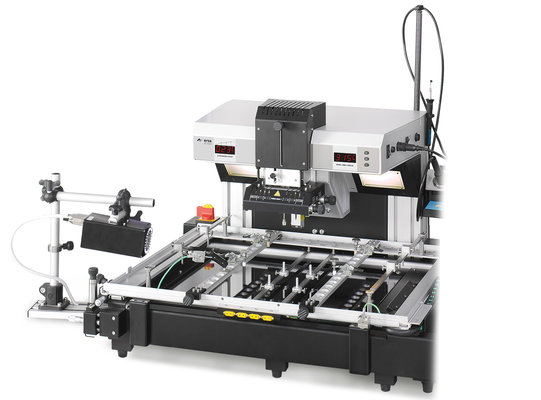

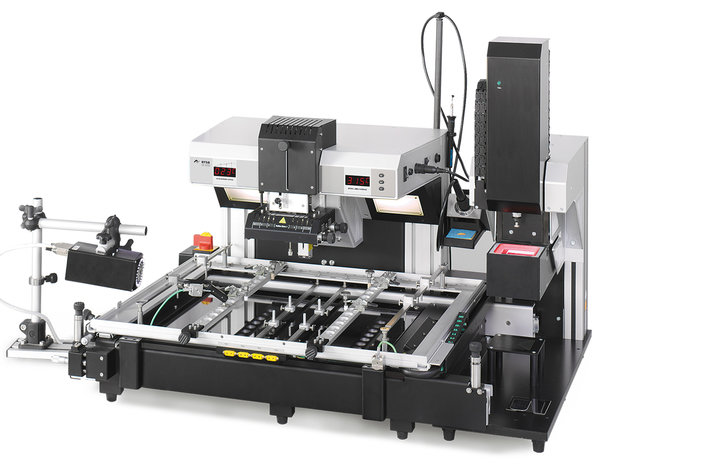

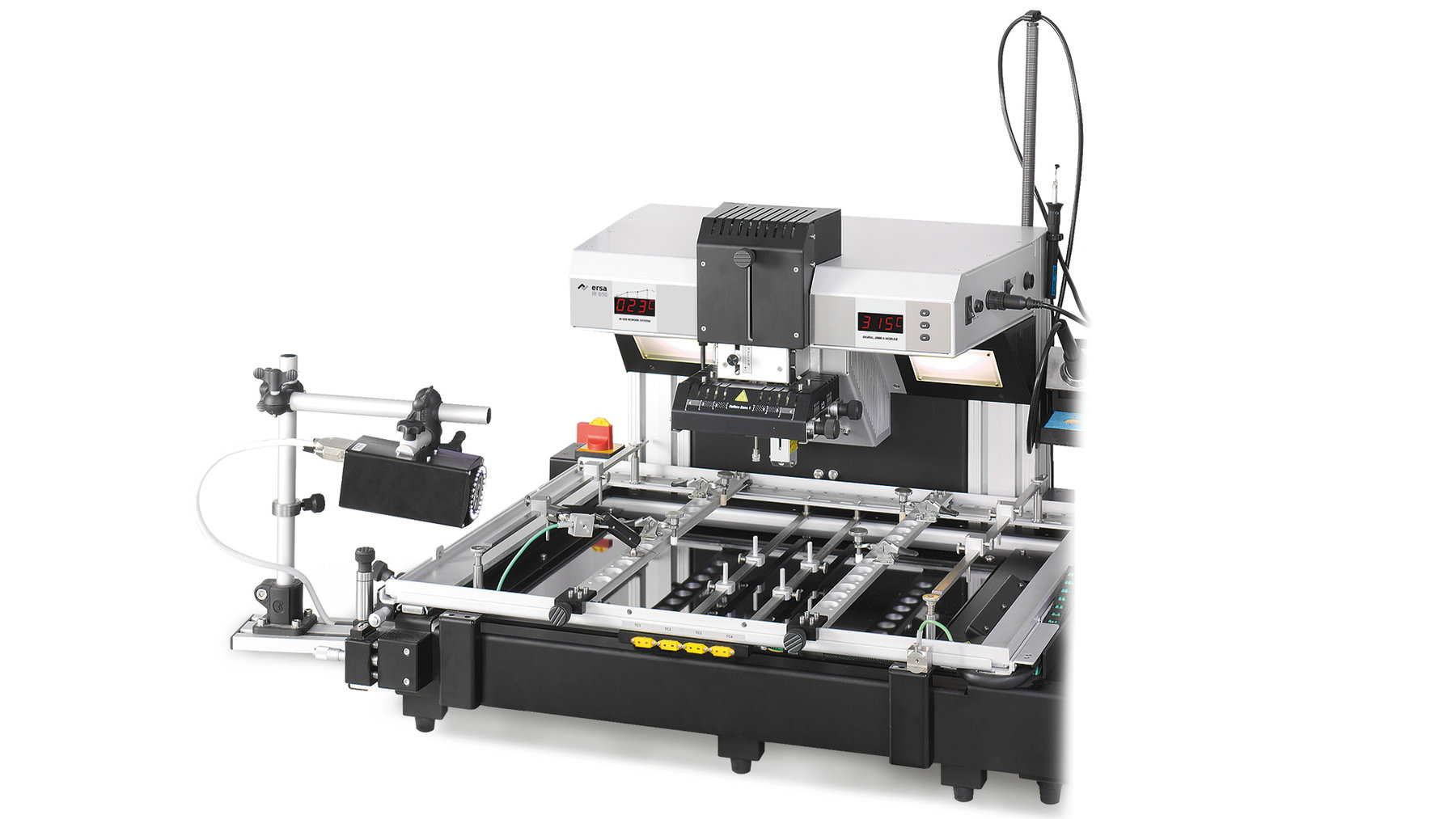

IR/PL 650 (discontinued)
- Four programmable heating zones in the 1,200 W top heater
- Five programmable heating zones in the 3,200 W bottom heater
- Built-in “DIGITAL 2000 A” soldering station for rework and solder residue removal
- Four thermocouple measurement channels and a non-contact IR sensor
- DynamicIR heating technology for large (460 x 560 mm) printed circuit boards

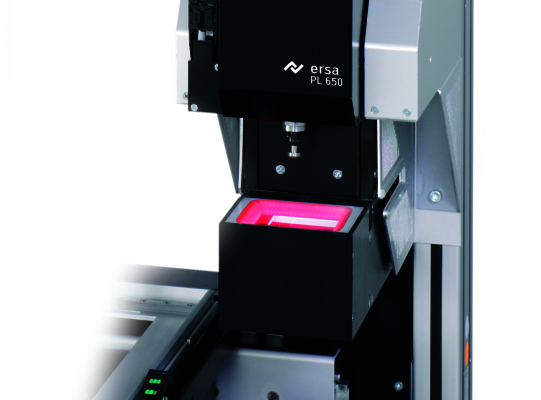

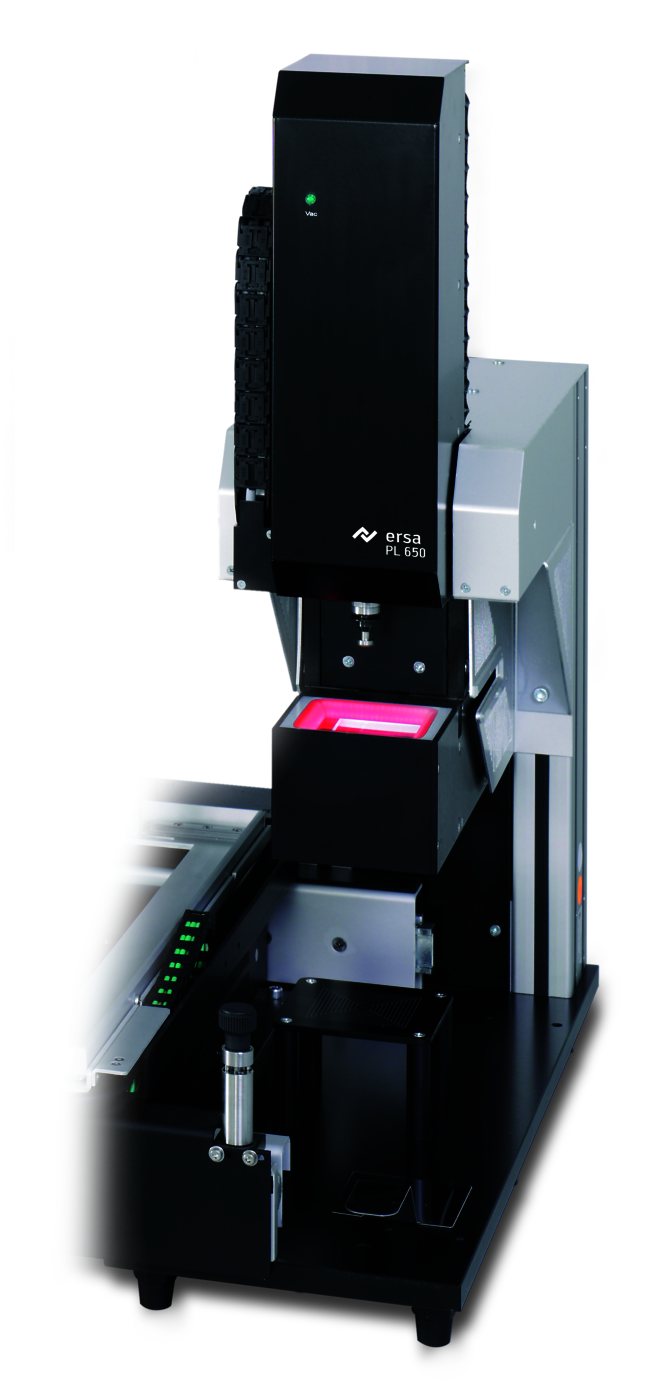

- High-precision (+/- 0.025 mm) auto pick & place with motorized zoom AF camera
- Intuitive operation with PC connectivity
- Process control and documentation via the IRSoft control software
- Motorized zoom reflow process camera for process monitoring
- Suitable for use with the Dip&Print Station
