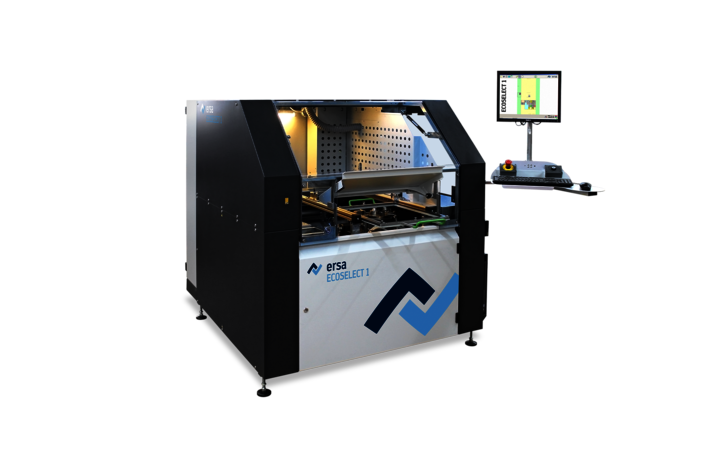

ECOSELECT 1 - Small dimensions, Great technology Ersa Selective Soldering
The perfect start-up solution with VERSAFLOW 3 technology and the smallest dimensions
With a footprint of less than 3 m², the ECOSELECT 1 fits perfectly into a production environment with cell production. Nevertheless, the small semi-automatic system incorporates the proven Ersa selective soldering technology of the VERSAFLOW systems. This means: uncompromising quality and precision.
HighlightsECOSELECT 1
- Compact batch system with a small footprint
- Same components and software modules from the well-known VERSAFLOW 3 platform
- Highest product quality even in the entry-level selective soldering range
ECOSELECT 1Ersa Selective Soldering
Technical data
Length:
1,700 mm
Width:
1,500 mm
Height:
1,612
Conveyor System
- Universal mask holder
- PCB width: 15-406 mm (opt. 508 mm)
- PCB length: 15-508 mm
- Max. Top PCB structures up to 120 mm
- Max. PCB superstructures at the bottom up to 60 mm (30 mm to z-variable)
- Max. PCB weight: 8 kg (opt. 12 kg)
Fluxer/Preheating/Solder module
- Fluxer: Drop jet in various sizes
- Preheating: IR radiation heating, convection on top or combination of IR and convection
- Soldering module:
- electromagnetic soldering pots
- Mini wave 13 kg, up to 2 pots
