Hybrid Rework System HR 500 Ersa Rework
Flexible desoldering, placement and soldering of SMT components
The HR 500 offers the full Ersa Hybrid Rework technology for budget-oriented users. The little brother of the HR 550 allows flexible repairs of standard assemblies up to 380 x 300 mm and 50 x 50 mm component size.

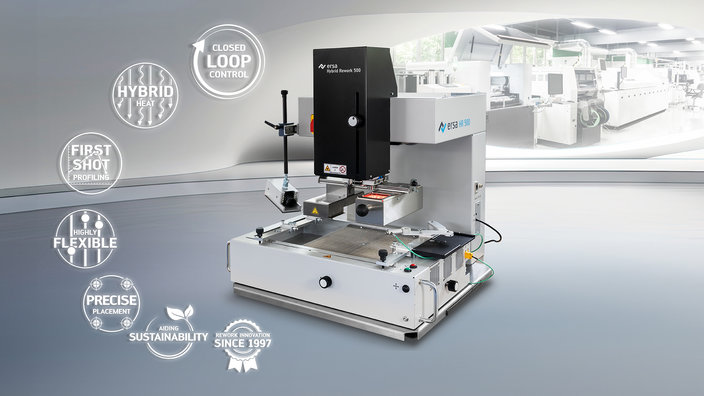

Highlights HR 500Ersa Rework

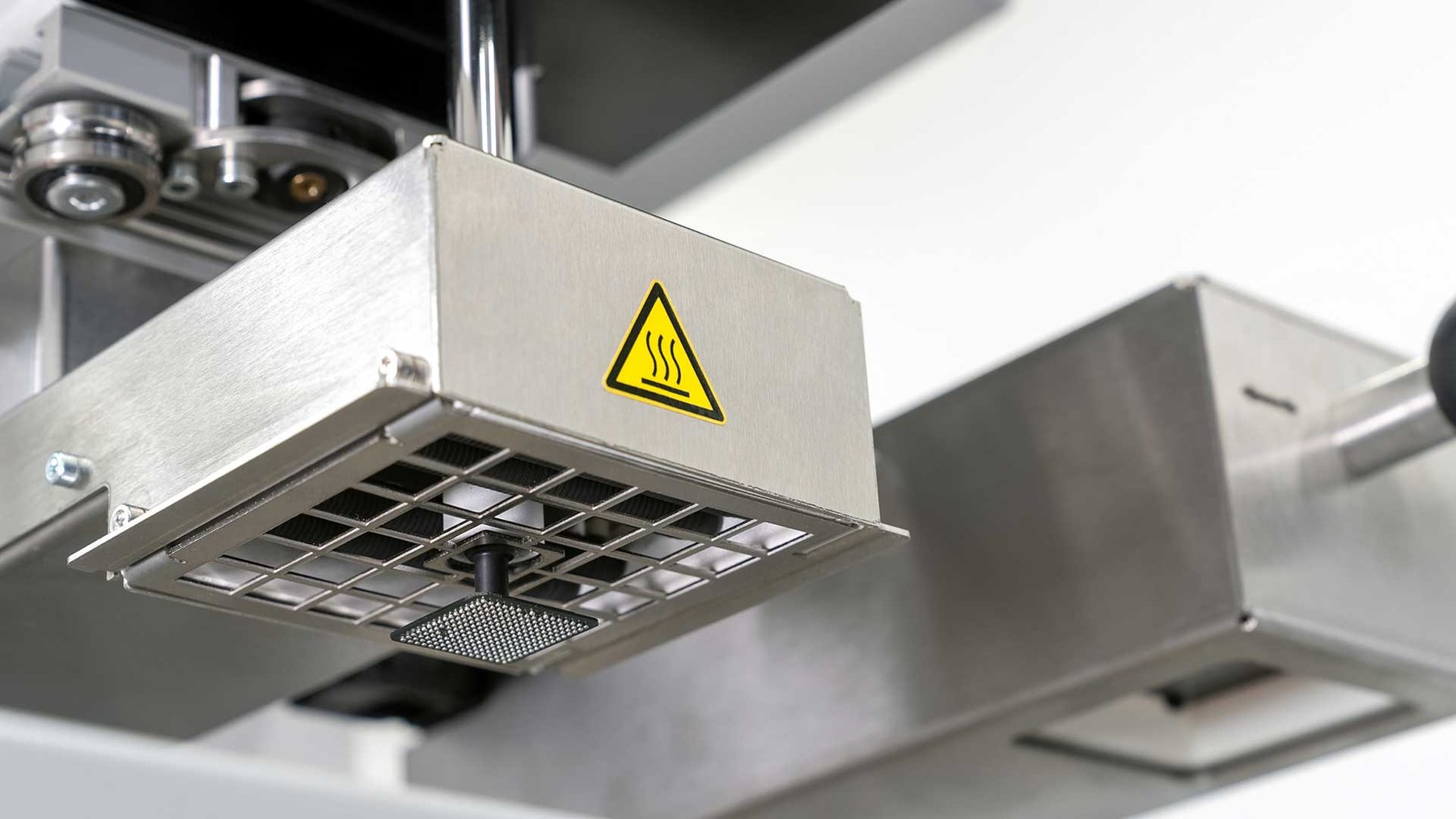

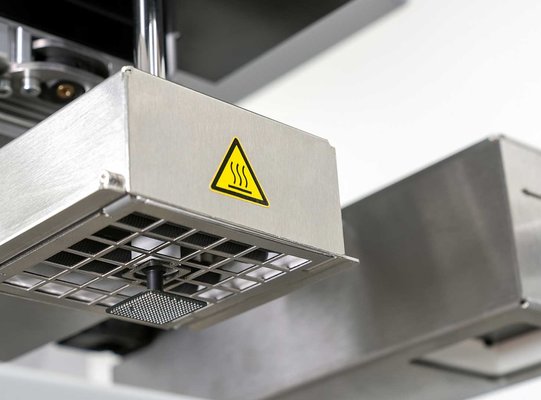

- 800 W hybrid high-performance heating element
- Full-surface 1,600 W IR underheating
- High-resolution cameras for placement and process monitoring
- Ergonomically optimized system operation
- Modern, user-friendly operating software
Advantages HR 500Ersa Rework
The technology of Ersa rework systems ensures sustainable added value in electronics production:
- gentle heating technology
- sensor-guided soldering processes
- precise component placement
- complete process documentation
- clear user guidance
Applications HR 500Ersa Rework
HR 500Ersa Videos
Ersa Rework – REWORK goes live – Trailer
Ersa Rework – REWORK goes live – Trailer
HR 500Ersa Rework
Technical data
- Dimensions (WxDxH) in mm: 655 x 645 x 710
- Weight in kg: approx. 55
- Antistatic version (y/n): yes
- Rated power in W: 2,400
- Rated voltage in V AC: 220 V - 240 VAC, 50-60 Hz, 16 A
- Top heater: Hybrid heater 800 W, 70 x 70 mm
- Bottom heater: IR heater (2 x 800 W), 270 x 270 mm
- PCB size in mm: up to 380 x 300 mm (+x)
- Component size in mm: from 1 x 1 to 50 x 50
- Measuring channels: 2x K-type
- Position laser: Class II
- Operating software: HRSoft 2 - suitable for Windows 8, 10 and Windows 11
- Test mark: CE
- Placement camera top: 5 MP GigE color camera, field of view 50 x 50 mm
- Working distance (typical): 60 mm to top heater, 35 mm to bottom heater
- Option: Reflow process camera: 2.3 MP, CMOS GigE color camera, 25 mm focal length, illumination: 2x LED, adjustable
Recommended accessories
Article no.:
Description
0HR510:

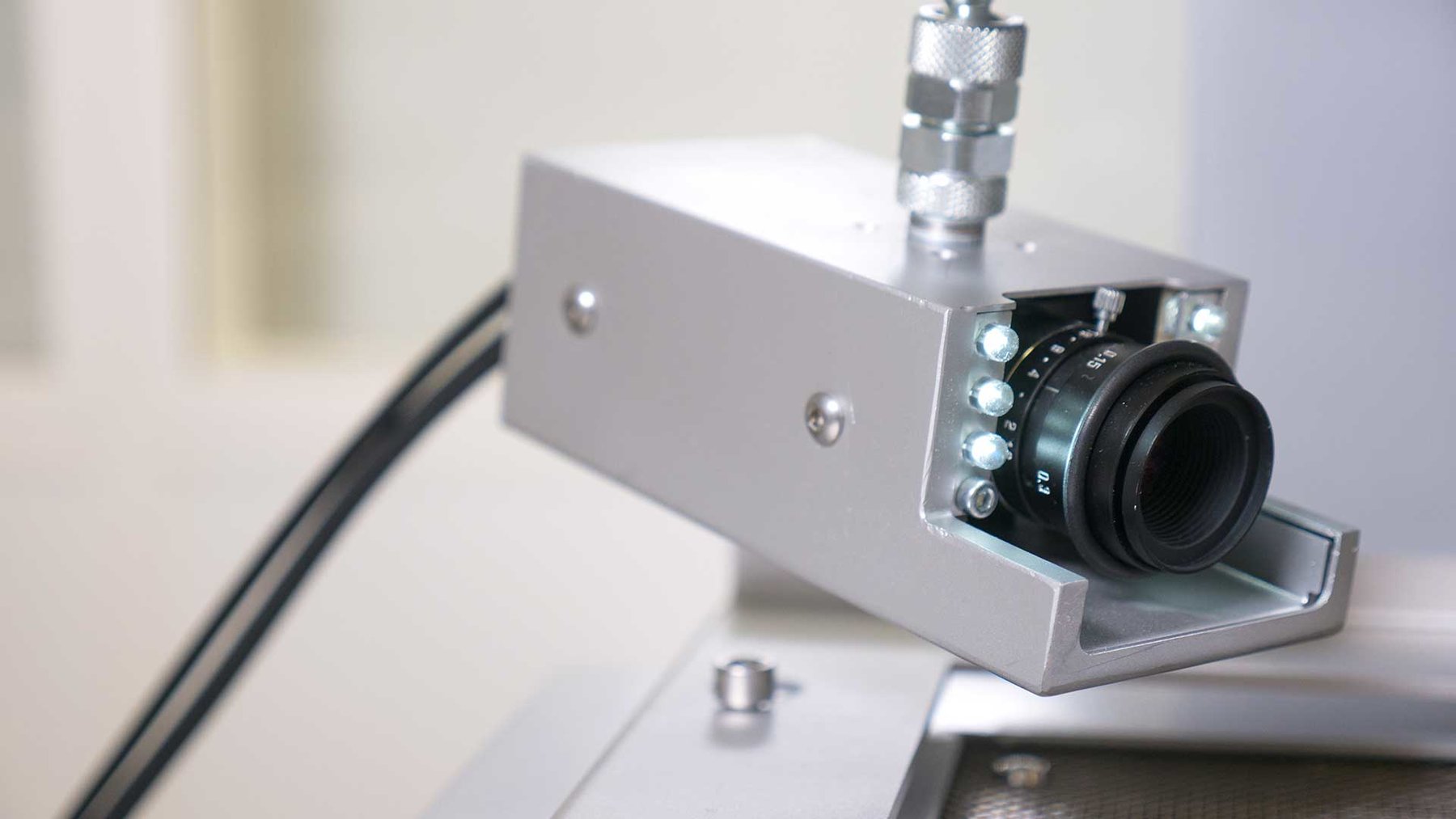

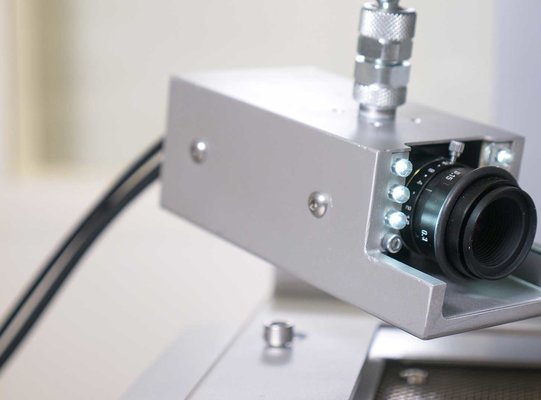

Reflow process camera for monitoring reflow processes
0HR645:
AccuTC 2.0 thermocouple K-type, for the second measuring channel
0IR6500-37:
AccuTC sensor without mounting K-type for the second measuring channel
0IR4510-02:
Thermocouple cable K-type, for the second measuring channel
0HR640:
TE holder for HR 500 suitable for AccuTC and AccuTC 2.0
Dip&Print Station (0PR100):
Well prepared: defined flux or solder paste application during rework
Order Information
Article no.:
Description
0HR500:

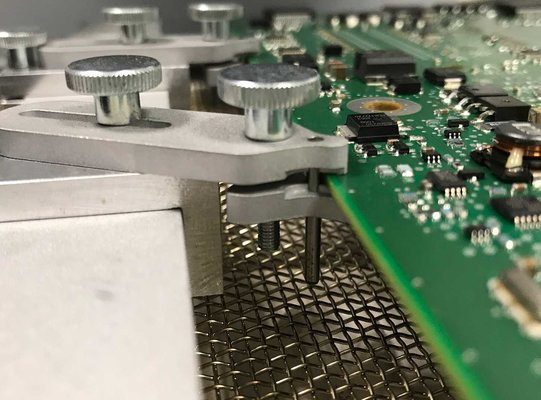

Ersa HR 500 with PCB holder 380 x 300 mm (+x)
0HR510:
Reflow process camera (RPC) for HR 500, HR 550 and HR 550 XL
0PR100:
Dip&Print Station, complete
Other system configurations on request
