Ersa HR 600/2 automatic rework system Ersa Rework
Automatic desoldering, placement and soldering of SMT components

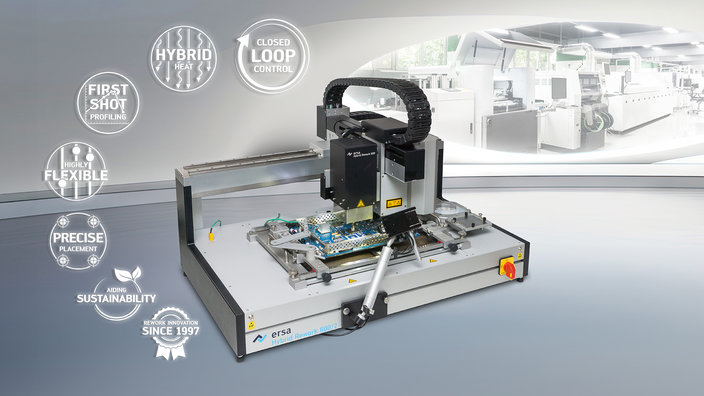

The HR 600/2 hybrid rework system sets standards in the automated processing of assemblies. Flexible, efficient, automated, reliable!
Ersa Rework Systems
HR 600/2: smart component repair
Repairing instead of throwing away is doubly worthwhile - whether for large or small assemblies. Repairing assemblies with Ersa rework systems saves costs and helps the environment. Contact us and find out more!
Highlights HR 600/2Ersa Rework

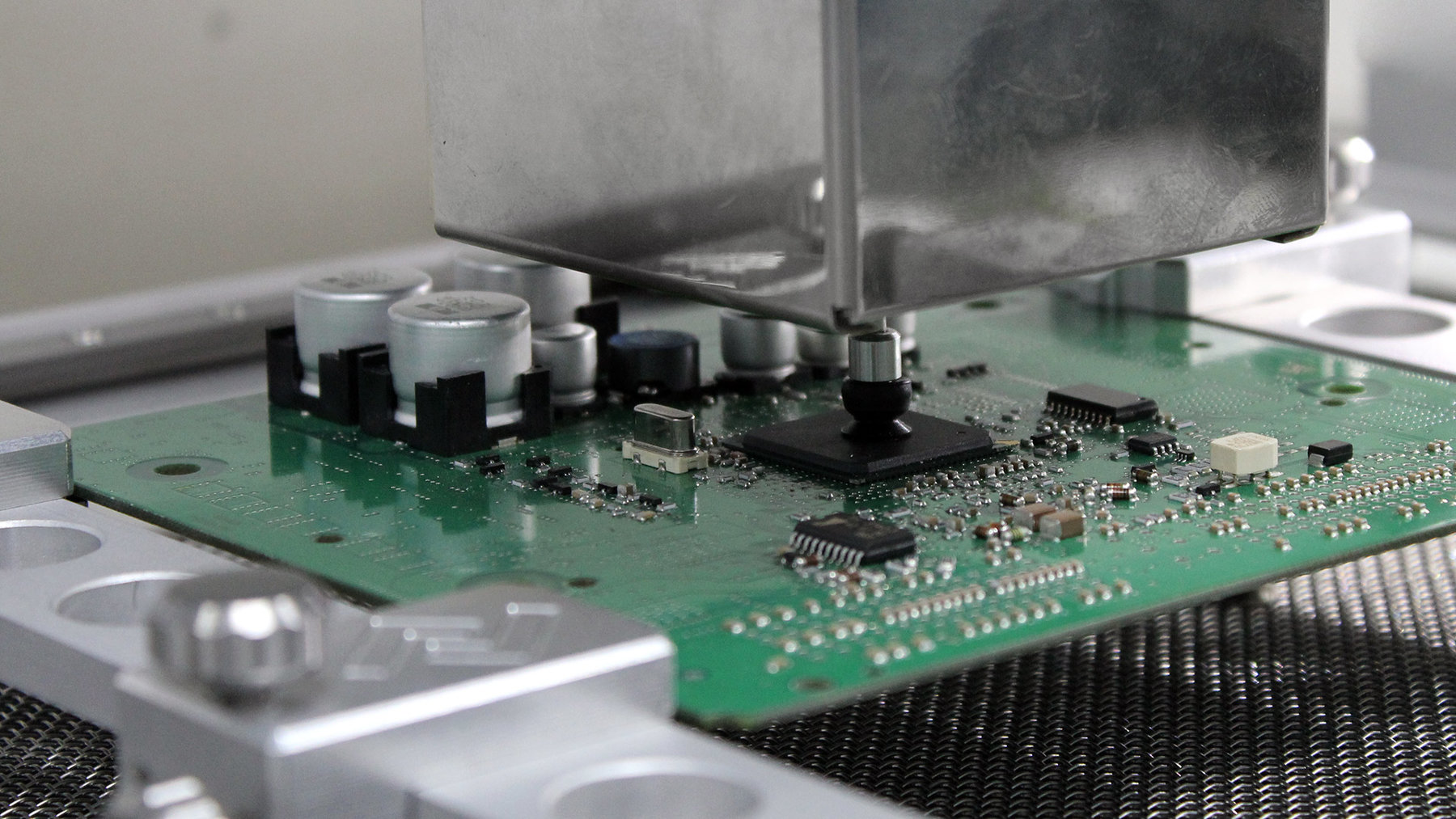

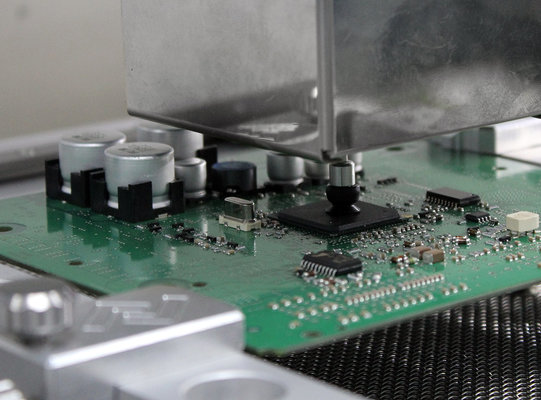

- Highly efficient 800 W hybrid heating head
- Homogeneous, large-area IR underheating with three 800 W heating zones

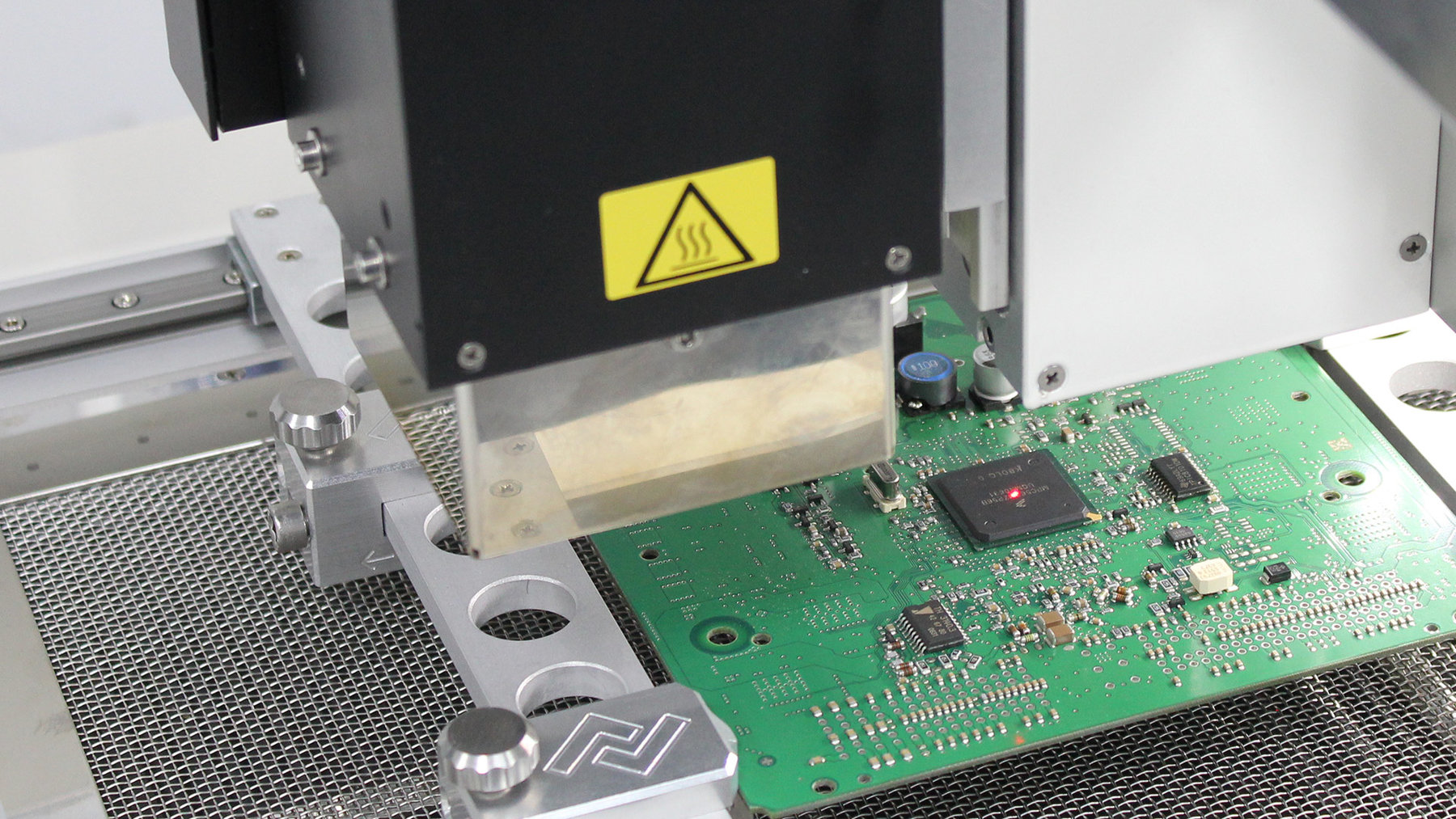

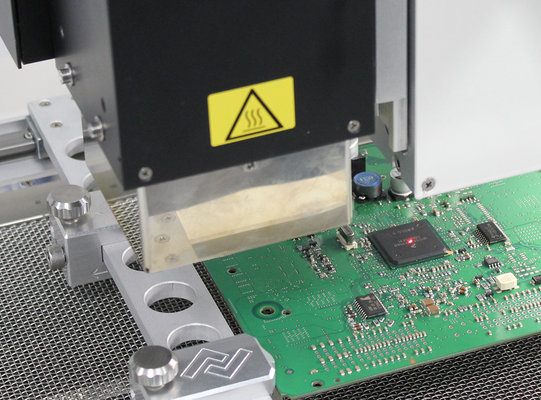

- Automatic and precise component alignment with the aid of image processing
- High-precision, motorized axis system for component placement (+/- 0.025 mm)
- Guarantees user-independent, reproducible repair results
- Process control and documentation via the HRSoft operating software
Advantages HR 600/2Ersa Rework
The technology of Ersa rework systems ensures sustainable added value in electronics production:
- Gentle heating technology
- Sensor-guided soldering processes
- Precise component placement
- Complete process documentation
- Clear user guidance
Applications HR 600/2Ersa Rework
HR 600/2Ersa Videos
Ersa Rework System – HR 600/2 – product video
Ersa One Click Rework – HR 600/2 – Trailer
Ersa ReworkHR 600/2
Patent notice:
This product may be protected by one or more U.S. patents, including: U.S. Patent No. US10217211B2
Patent notice:
This product may be protected by one or more U.S. patents, including: U.S. Patent No. US10217211B2
Patent notice:
This product may be protected by one or more U.S. patents, including: U.S. Patent No. US10217211B2
Patent notice:
This product may be protected by one or more U.S. patents, including: U.S. Patent No. US10217211B2
Ersa Success StoriesHR 600/2
HR 600/2Ersa Rework
Technical data
- Dimensions (WxDxH) in mm: 850 x 660 x 620
- Weight in kg: 57
- Antistatic version (y/n): yes
- Rated power in W: 3,200
- Rated voltage in V AC: 220 V - 240 VAC, 50-60 Hz, 16 A
- Top heater: Hybrid heater (2 x 400 W), 60 x 60 mm
- Bottom heater: IR emitter (3 x 800 W), 380 x 250 mm
- PCB size in mm: up to 390 x 300 (+x), up to 535 x 300 (+x); (0HR600/2L)
- Component size in mm: from 1 x 1 to 50 x 50
- Operating software: HRSoft - suitable for Windows 8, 10 and Windows 11
- Test mark: CE
- Top placement camera: 1.3 MP USB 2.0 color camera, field of view 60 x 60 mm
- Placement camera bottom: 1.3 MP USB 2.0 monochrome camera, field of view 60 x 60 mm
- Compressed air connection: 6-10 bar (oil-free). ¼ inch quick coupling
- Cooling air volume: approx. 65 l/min (@ 6 bar)
- Option: Reflow process camera: 10 MP CMOS USB color camera, 25 mm focal length; Illumination: 2x LED spotlight, adjustable
Recommended accessories
Article no.:
Description
0HR610P:
Ersa reflow process camera for HR 600/2 for monitoring the soldering process
0IR6500-37:
AccuTC sensor without mounting K-type for the second measuring channel
0IR4510-02:
Thermocouple cable K-type, for the second measuring channel
0HR640:
TE holder for HR 600/3P suitable for AccuTC and AccuTC 2.0
0HR635:
LP holder HR 600/2 (large) for PCB size up to 300 x 535 mm
0IR5500-40+0IR4520-07:
Microsuction cup type 0510 Metal microsuction cup 0.9 mm with silicone suction cup 1 mm

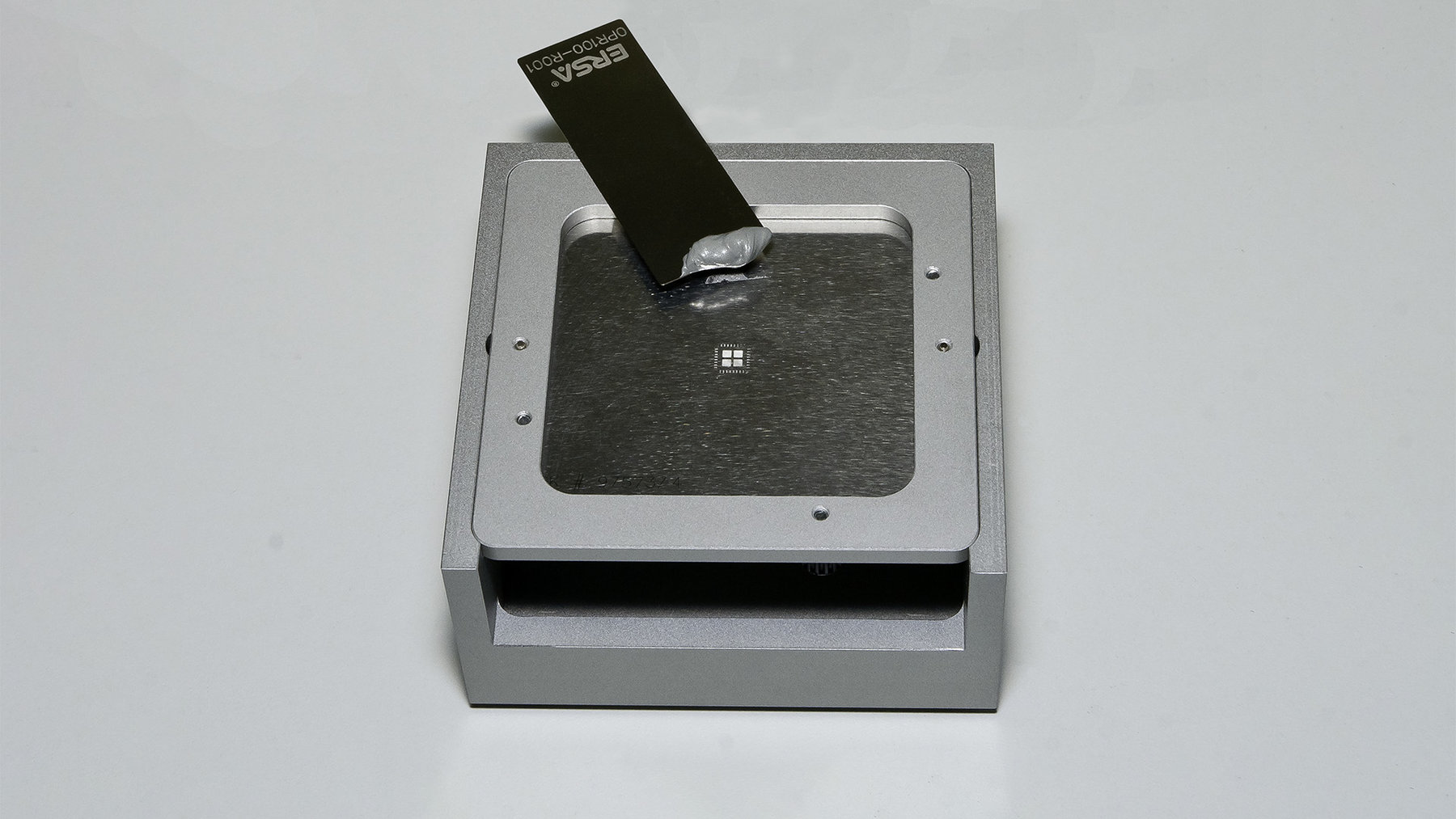

Dip&Print Station (0PR100):
Well prepared: defined flux or solder paste application during rework
0IR6500-01:
AccuTC thermocouple
Available variants
Article no.:
Description
0HR600/2:
HR 600/2 Hybrid Rework System
0HR600/2BHL:
HR 600/2 Hybrid Rework System with lowered bottom heating
0HR600/2L:
HR 600/2 with PCB holder 535 x 300 mm (+x)
0HR600/2LBHL:
HR 600/2 with PCB holder 535 x 300 mm (+x) and lowered bottom heating
Order Information
Article no.:
Description
0HR600/2:
Ersa HR 600/2 with PCB holder 390 x 300 mm (+x)
0HR600/2BHL:
Ersa HR 600/2 with PCB holder 290 x 300 mm (+x) and lowered bottom heater
0HR600/2L:
Ersa HR 600/2 with PCB holder 535 x 300 mm (+x) and lowered bottom heater
0HR610P:
Reflow process camera (RPC) for HR 600/23
0PR100:
Dip&Print Station, complete
Other system configurations on request
