HR 600 P – automated rework precision

The HR 600 P hybrid rework system focuses on precision and automation, as it is particularly suitable for SMD components with very fine grids and reliably processes small SMT components and BGAs up to a size of 60 x 60 mm. The automatic soldering and placement processes are supplemented by automatic, non-contact residual solder removal and non-contact temperature monitoring.

Ersa Rework Systems

HR 600 P: Smart component repair

Repairing instead of throwing away is doubly worthwhile - whether for large or small assemblies. Repairing assemblies with Ersa rework systems saves costs and helps the environment. Contact us and find out more!

Highlights HR 600 PErsa Rework

High-precision axis system, high-resolution cameras
Automated component placement as well as soldering and desoldering processes
Hybrid heating head with two heating zones
Process monitoring with reflow process camera
Large-area, powerful IR underheating with three zones
Three K-type thermocouple inputs for AccuTC sensor
Effective component cooling with compressed air
Optional residual solder removal with AUTO SCAVENGER (can also be retrofitted)

Maintaining added valueHR 600 P

The technology of Ersa rework systems ensures sustainable added value in electronics production:

Gentle heating technology
Sensor-guided soldering processes
Contactless residual solder removal
Precise component placement
Complete process documentation
Clear user guidance

Product FeaturesHR 600 P

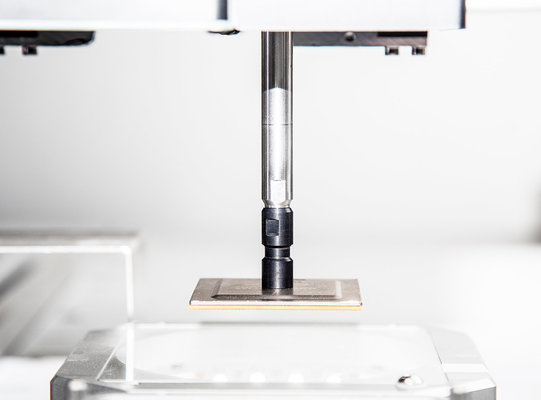

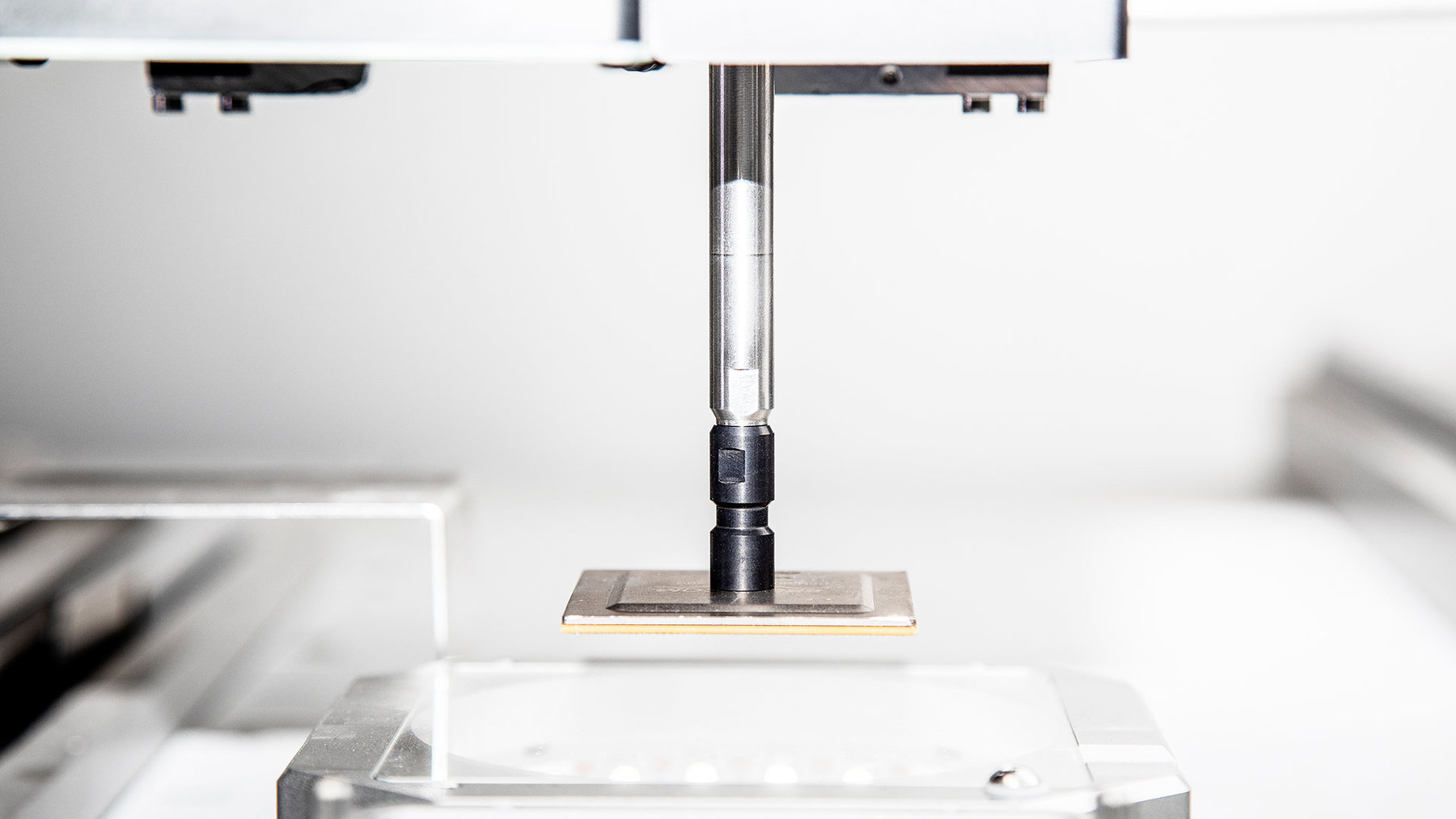

Metallic BGA above the light dome to detect the component connections

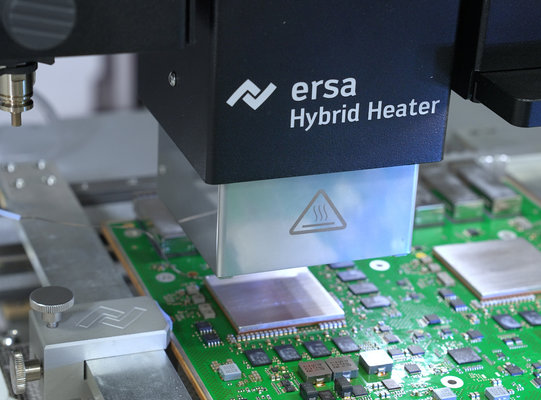

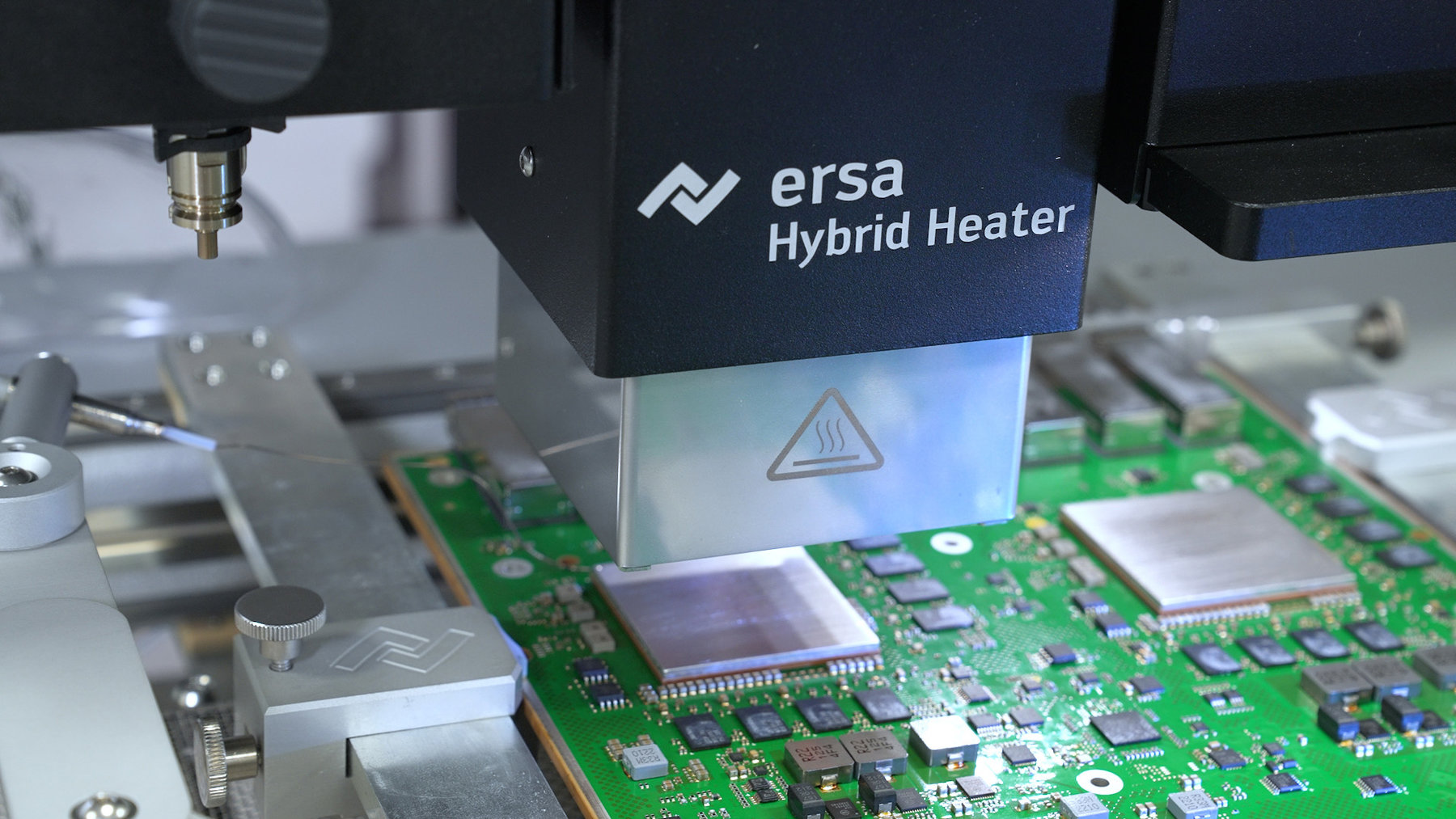

Homogeneous and reproducible component heating thanks to the hybrid heating head

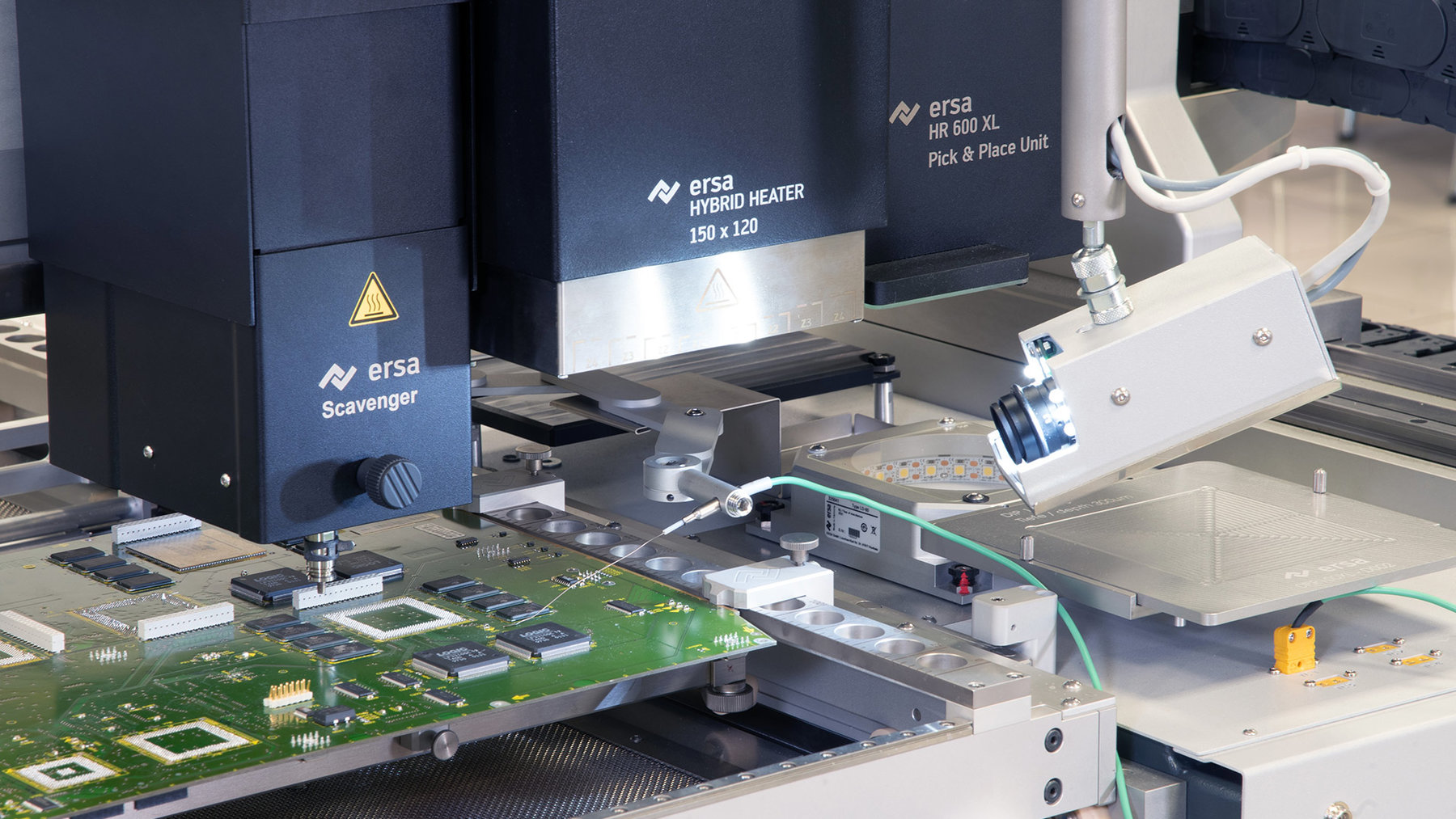

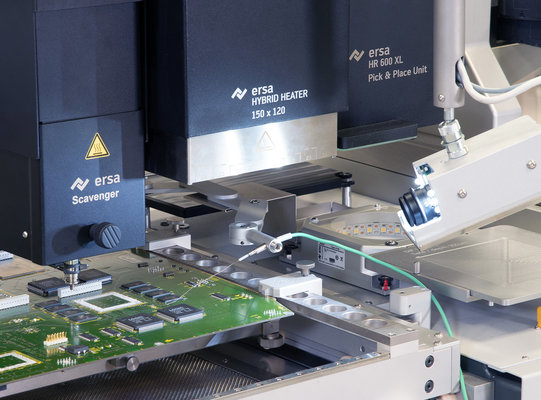

Ersa SCAVENGER - contactless solder residue removal

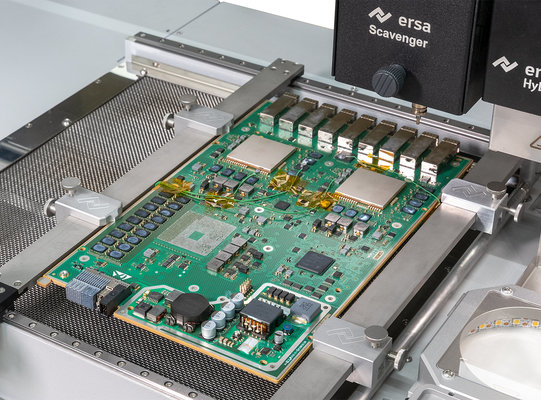

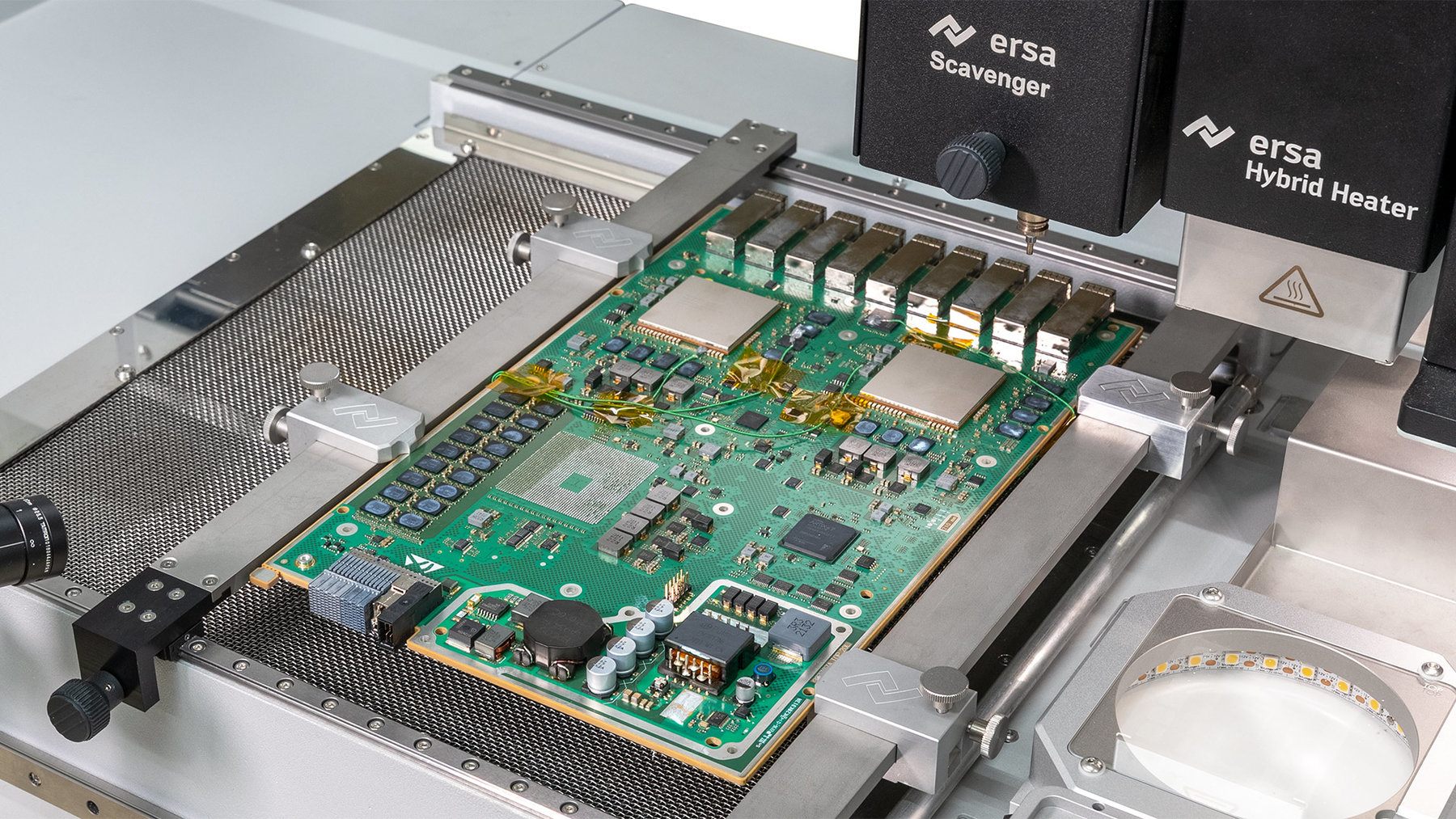

HR 600 P bottom heater with nine radiant heaters. Optional: can be lowered (for high components on the underside) and with enlarged PCB holder

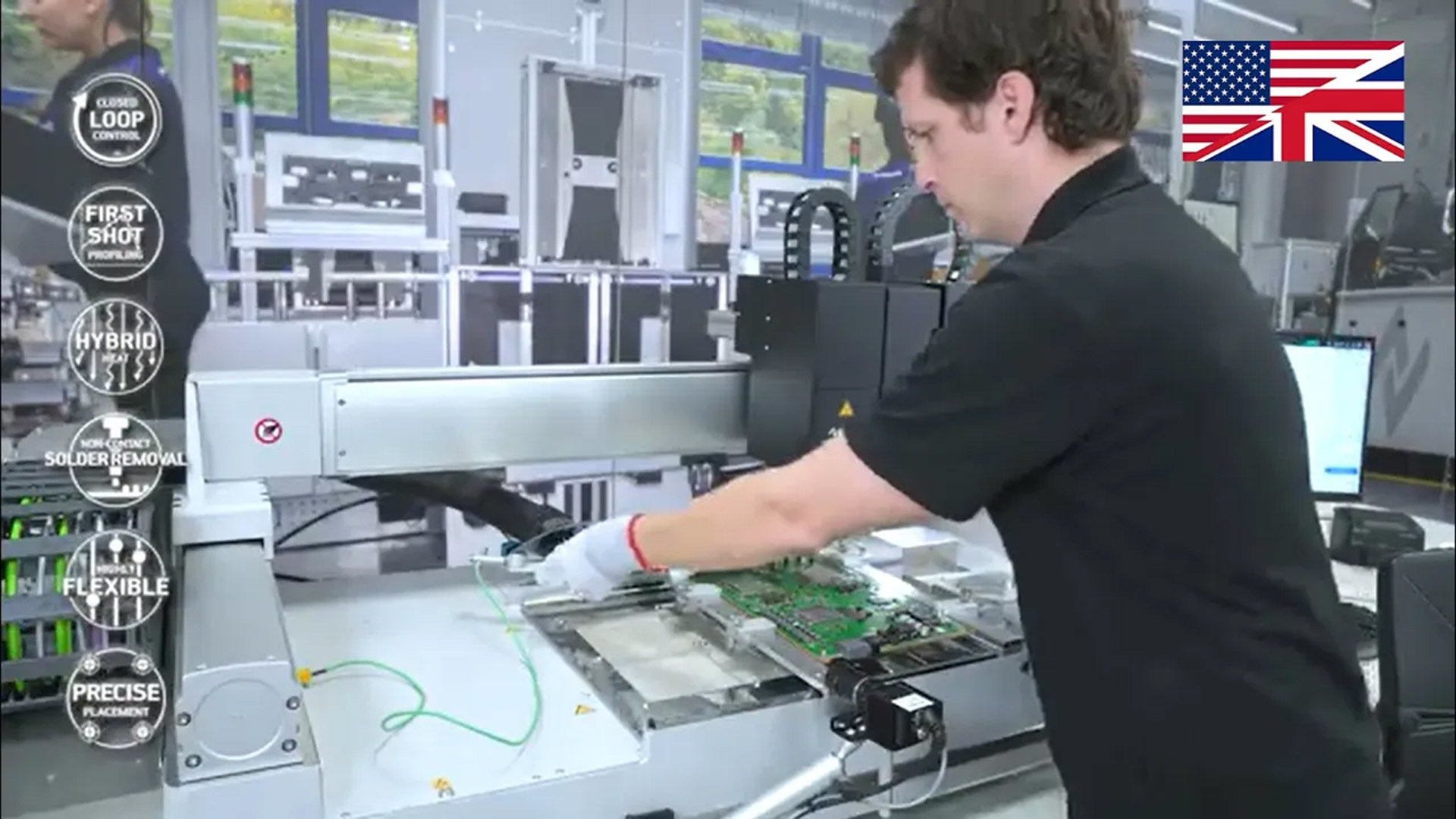

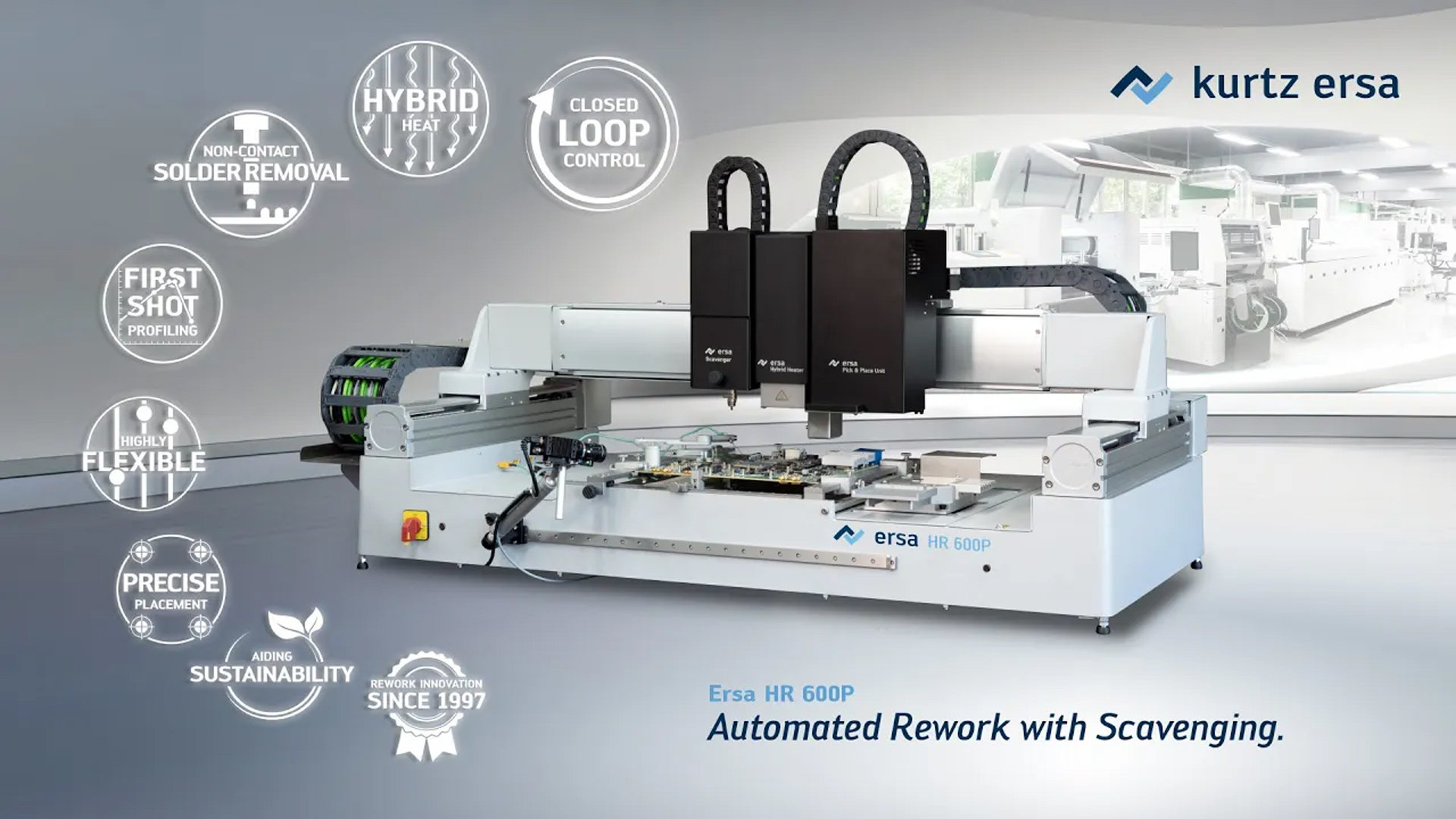

HR 600 PErsa Videos

Automatic residual solder removal for HR 600 PHR 600 P

Before a new component can be soldered onto a circuit board, the solder remaining on the circuit board after desoldering must be removed. In an automated process, the Auto Scavenger SC 600 gently removes the remaining solder from the connection surfaces on the PCB. The module can also be retrofitted and is fully integrated into the HRSoft 2 software.
