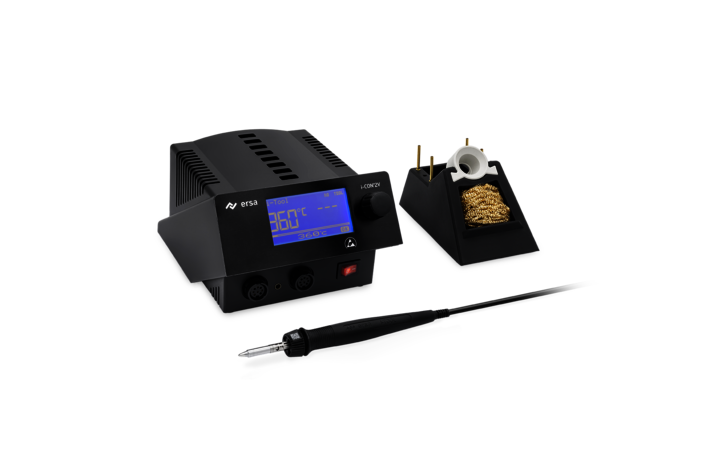

i-CON 2V MK2 Ersa Soldering Station
dual channel, electronically controlled soldering and desoldering station, 150 W
Plus in flexibility for soldering professionals!
The i-CON 2V MK2 is suitable for all SMT and THT soldering tasks in electronics production, rework and development. The connectable tools allow flexible use of the station depending on the application.The spectrum ranges from the smallest SMD chips (0201) and standard SMD components to high-pole components (PLCC 84) and high-mass solder joints using THT technology, including their desoldering with solder extraction.
Highlights i-CON 2V MK2Ersa Soldering Station
- Soldering and desoldering station for simultaneous operation of two soldering tools
- Intelligent power management - 120 W are split up dynamically between the connected tools
- Easy operation - intuitive one touch push button and a large multifunctional display
- Eight different soldering tools connectable
- VARIO series soldering tools connectable
- Available with interface to solder fume extraction unit, heating plate and PC
- Firmware update via microSD card
- Antistatic design
Applications i-CON 2V MK2Ersa Soldering Station
VideosErsa i-CON 2V MK2
Ersa i-CON 2V MK2 soldering station - standard for hand soldering in the industry
Ersa i-CON 2V MK2 soldering station - standard for hand soldering in the industry

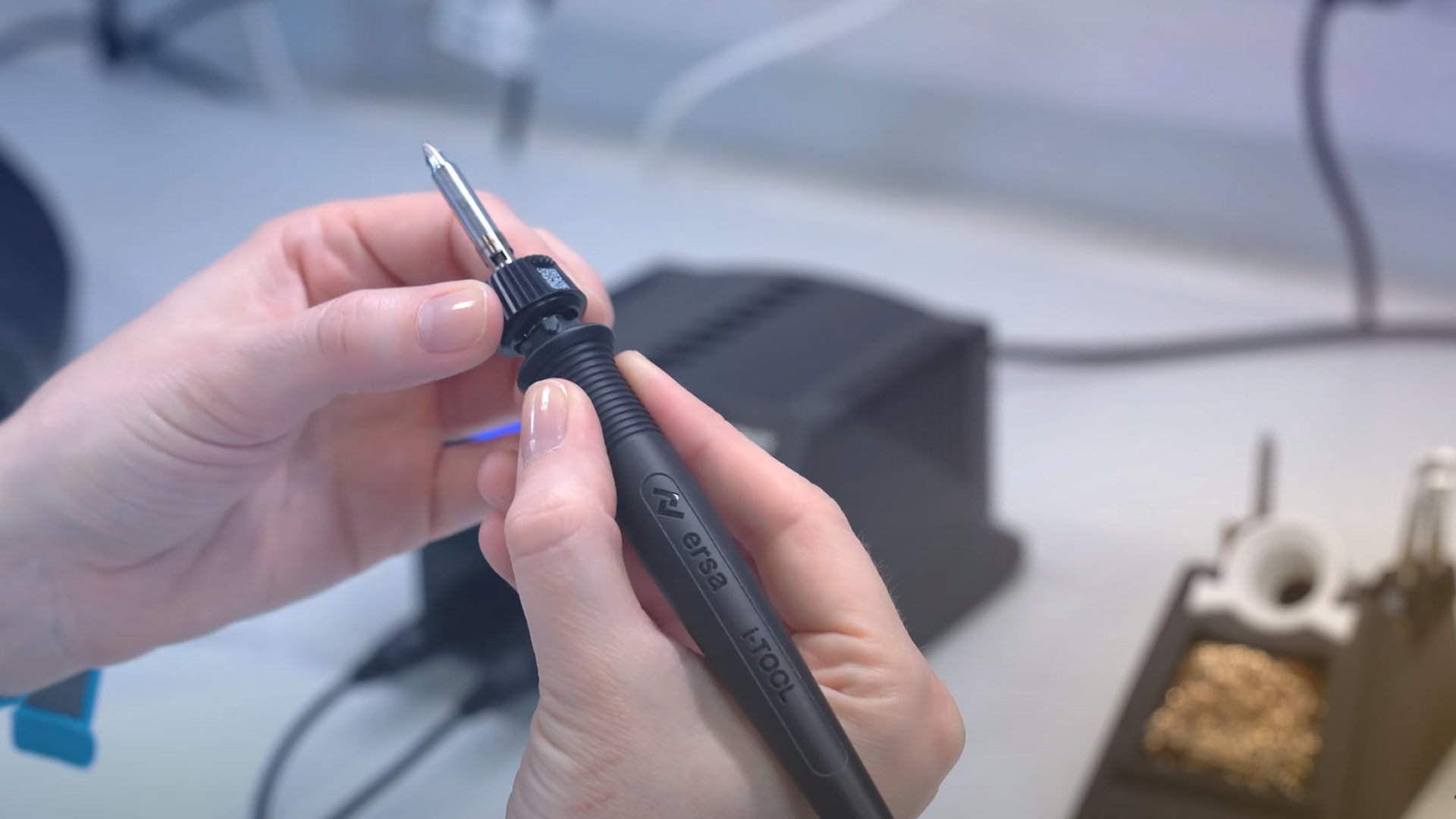

Ersa MK2 soldering iron with Tip'n'Turn - tip change easier than ever!
Ersa MK2 soldering iron with Tip'n'Turn - tip change easier than ever!
i-CON 2V MK2Ersa Soldering Station
Technical Data
Dimensions (W x D x H) in mm:
150 x 175 x 105
Weight in kg:
3,7
Antistatic Design (y/n):
y
Power Rating in W:
120
Nominal voltage in V AC:
230
Secondary voltage in V:
24
Temperature range in °C:
150-450
Digital display (y/n):
y
Test symbol:
CE, VDE
Power consumption standby in W:
20
Connectable
Article-No.:
Description
0105CDJ:
i-TOOL MK2
0460MDJ:
desoldering tweezers CHIP TOOL VARIO
0740EDJ:
Entlötkolben X-TOOL VARIO (only with existing vacuum station)
0450MDJ:
CHIP TOOL
0270BDJ:
MICRO TOOL (discontinued)
0640ADJ:
TECH TOOL (discontinued)
0840CDJ:
POWER TOOL
Available Versions
Article-No.:
Description
0IC2205V:
i-CON 2V MK2 with i-TOOL MK2
0IC2205VC:
i-CON 2V MK2 with i-TOOL MK2 and CHIP TOOL VARIO
0IC2205VIT:
i-CON 2V MK2 with two i-TOOLS MK2
0IC2205V0C:
i-CON 2V MK2 with i-TOOL MK2 and interface
0IC2235V:
Control station i-CON 2V MK2 without tool
0IC2235V0C:
Control Station i-CON 2V MK2 with interface, without tool
Accessories
Article-No.:
Description
0A58:
Ablageständer, antistatisch
