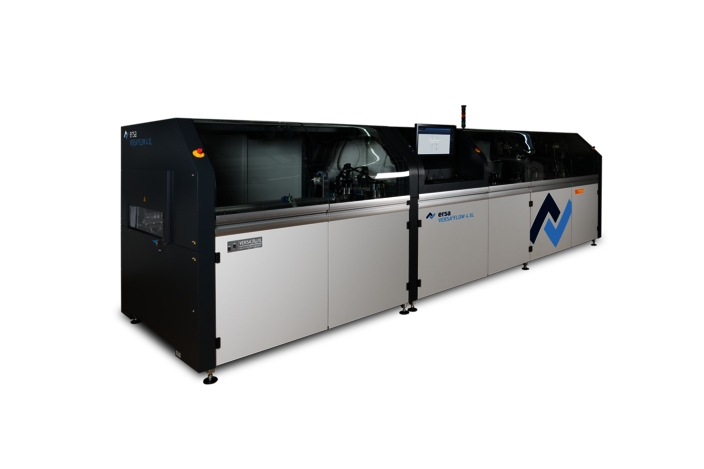

VERSAFLOW 4 XL - Selective Soldering for XL Boards. Think big! Ersa Selective Soldering
Inline Selective Soldering for PCB sizes up to 1,200 x 610 mm
Parallel to miniaturization, there is a trend to very large, highly integrated assemblies that are used in control centers, for example. With the VERSAFLOW 4 XL, PCB sizes of up to 1,200x 610 mm can be soldered efficiently and with maximum process safety.
Technical HighlightsVERSAFLOW 4XL
- IPC CFX-certified high-end selective soldering machine for inline production concepts
- For PCB sizes up to 1,200 x 610 mm
- Full modularity thanks to extremely flexible Ersa Modular system
- Dual pot y-/z-variable, power convection, automatic nozzle activation
- Intuitive operating concept with awarded ERSASOFT 5 user interface
- Integrated CAD assistant 4
Your BenefitVERSAFLOW 4XL
- Highest process safety and soldering quality
- For highly integrated assemblies in control centers, LED technology, 5G,...
- Almost unlimited possible configurations for every customer requirement, individually configurable and expandable
- Tripling of throughput with maximum flexibility
- Simple, clear and efficient operation, monitoring and documentation
- Fast, intuitive and convenient soldering program setup
VERSAFLOW 4 XLErsa Videos

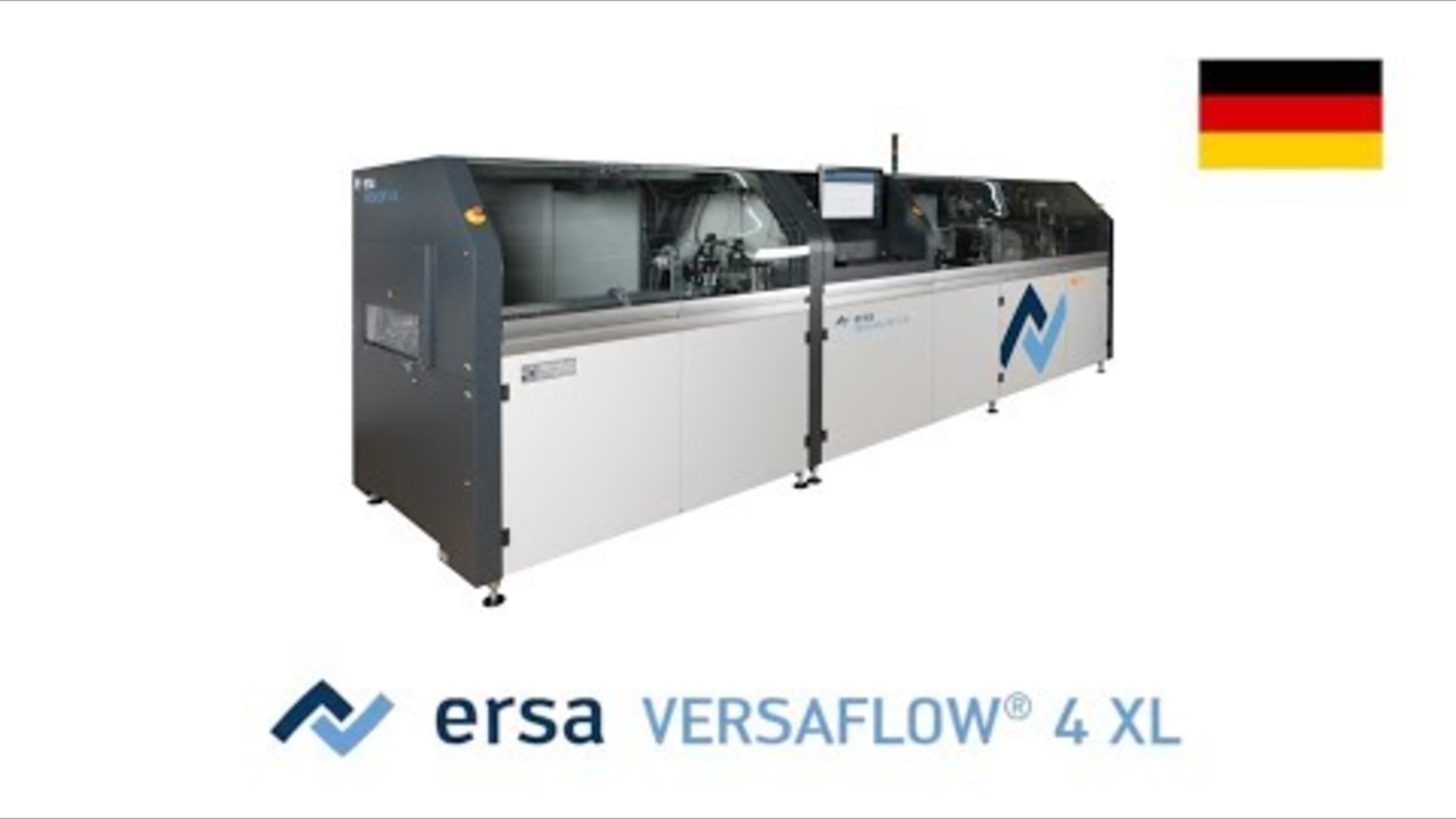

Ersa Selective Soldering – VERSAFLOW 4XL | Product Video
/www/web722/htdocs/import/contentserv/products/assets/VERSAFLOW 4 XL Gesamtvideo deutsch.jpg,/www/web722/htdocs/import/contentserv/products/assets/temp/VERSAFLOW 4 XL Gesamtvideo deutsch.jpg
Ersa Success StoriesVERSAFLOW 4 XL
VERSAFLOW 4 XLErsa Selective Soldering
Technical Data
Conveyor System
- Roller conveyor
- PCB width: 50-610 mm
- PCB length: 127-508 mm, opt. 1,200 mm
- PCB weight: 15 kg (opt. 20 kg)
Fluxer/Preheating/Soldering Module
Fluxer:
VERSAFLUX module with 2 independent axis systems
Precision spray flux system
Number of spray heads/axis: up to 2
Preheating:
IR emitter at the bottom (basic), convection at the top (option)
Soldering module:
VERSAFLEX soldering module with 2 independent axis systems
Mini wave, approx. 13 kg
