VERSAFLOW 4/55 - the non-plus-ultra for inline selective soldering

The VERSAFLOW 4 series not only impresses with its flexible modular concept, increased process flexibility and the award-winning ERSASOFT 5 user interface, but also offers unrivaled flexibility at the highest soldering level with VERSAFLUX and VERSAFLEX. The current flagship of the Ersa VERSAFLOW model series is designed both for the series production of large quantities with low product changes (Low Mix, High Volume) and for the production of small series with frequent product changes (High Mix, Low Volume). Thanks to its almost unlimited configuration options, the modular VERSAFLOW 4/55 can be ideally adapted to the individual customer requirements. The Flex module of the VERSAFLOW 4 offers maximum flexibility, while the VERSAFLOW 4 XL is available for extra-large boards.

Technical HighlightsVERSAFLOW 4/55

  • IPC CFX-certified high-end selective soldering machine for inline production concepts
  • Full modularity thanks to extremely flexible Ersa Modular system
  • Dual pot y-/z-variable, power convection, automatic nozzle activation
  • Intuitive operating concept with awarded ERSASOFT 5 user interface
  • Integrated CAD assistant 4

Your BenefitsVERSAFLOW 4/55

  • Highest process safety and soldering quality
  • Almost unlimited possible configurations for every customer requirement, individually configurable and expandable
  • Tripling of throughput with maximum flexibility
  • Simple, clear and efficient operation, monitoring and documentation
  • Fast, intuitive and convenient soldering program setup

VERSAFLOW 4/55Ersa Videos

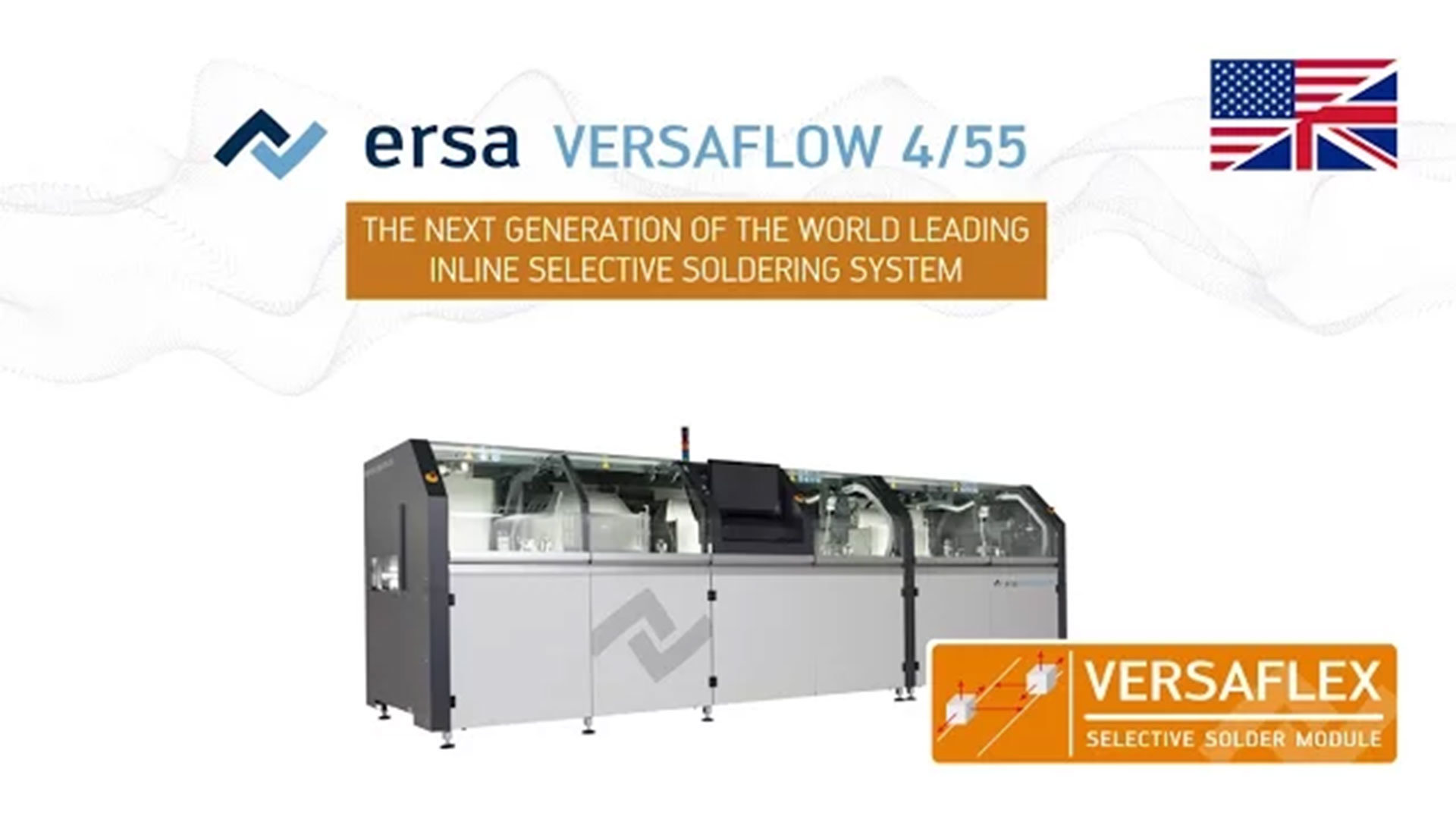

Ersa Selective Soldering – VERSAFLOW 4/55

Ersa Selective Soldering – VERSAFLOW 4/55 | Product Video

VERSAFLOW 4/55Ersa Selective Soldering

Technical data

Length:
from 2.600 mm
Width:
approx.. 1.800 mm
Height:
approx. 1.600 mm

Conveyor System

  • Roller conveyor
  • PCB width: 63.5-508 mm
  • PCB length: 127-508 mm
  • Max. PCB superstructures top up to 120 mm
  • Max. PCB superstructures at the bottom up to 60 mm
  • Max. PCB weight: 5 kg (opt. 15 kg)

Fluxer/Preheating/Solder module

  • Fluxer: Drop jet in various sizes
  • Preheating: IR radiator heating, convection or combination of IR and convection
  • Soldering module:
        electromagnetic pot
        Mini wave 13 kg up to 6 pots
