ECOSELECT 4 - Inline and batch selective soldering system Ersa Selective Soldering

Inline and batch selective soldering system for highest selective soldering quality
As a compact system, the ECOSELECT 4 is ideal for small to medium-sized production series, where flexibility is important. The ECOSELECT 4 incorporates machine technology from the latest VERSAFLOW generation. It is equipped with a high-quality roller conveyor for maximum PCB dimensions of 508 x 508 mm and can be used in batch and inline operation. Another highlight is the power convection, which ensures optimum homogeneous heating even with the most difficult components.
HighlightsECOSELECT 4
- Flexibly integrable soldering system: inline or batch operation
- VERSAFLOW 4 technology
- PCB size 508 x 508 mm
- High-quality roller conveyor
- Up to two spray heads and flux tanks
- Power convection
- Y/Z variable dual solder pots
- Automatic nozzle activation
- Upgrade with independent flux module to a full inline machine
- Award-winning ERSASOFT 5 software
- VERSACAM – solder wave height measurement “on the fly”
- IPC-CFX certification
ECOSELECT 4Ersa Videos

Ersa Selektivlöten – ECOSELECT 4 – Produktvideo
Ersa Selektivlöten – ECOSELECT 4 – Produktvideo

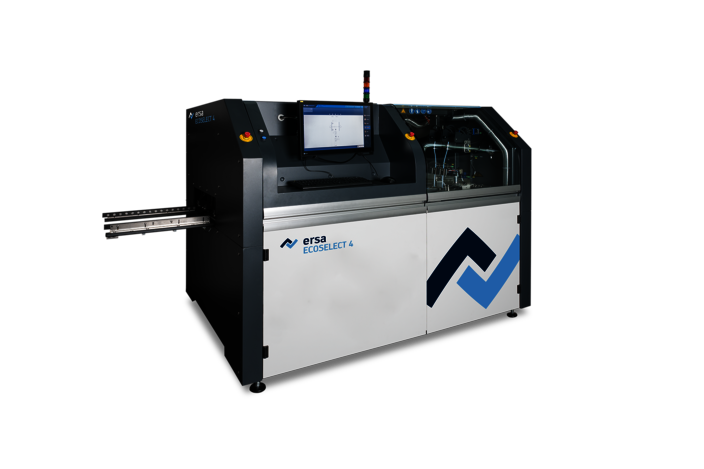

ECOSELECT 4Ersa Selective Soldering
Technical data:
Length:
2,000 mm
Width:
1,800 mm
Height:
1,700 mm
Conveyor system
-
Rollentransport
- Roller transport
- PCB width: 50-508 mm
- PCB length: 127-508 mm
- Max. PCB superstructures top up to 120 mm
- Max. PCB superstructures at the bottom up to 60 mm
- Max. PCB weight: 15 kg
Fluxer/Preheating/Solder module
Fluxer: Drop jet in various sizes
Preheating: IR radiation heating at the bottom, convection at the top (optional), power convection at the top (optional)
Soldering module:
electromagnetic soldering pots
Mini wave 13 kg, up to 2 pots
