VERSA®EYE - Perfect inspection of solder joint quality Ersa Selective Soldering

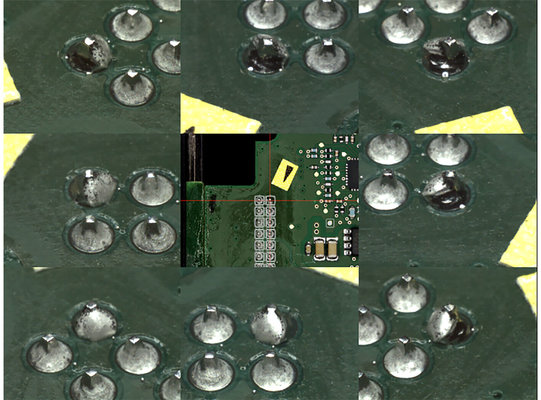

Perfectly documented quality - especially for the inspection of THT solder joints

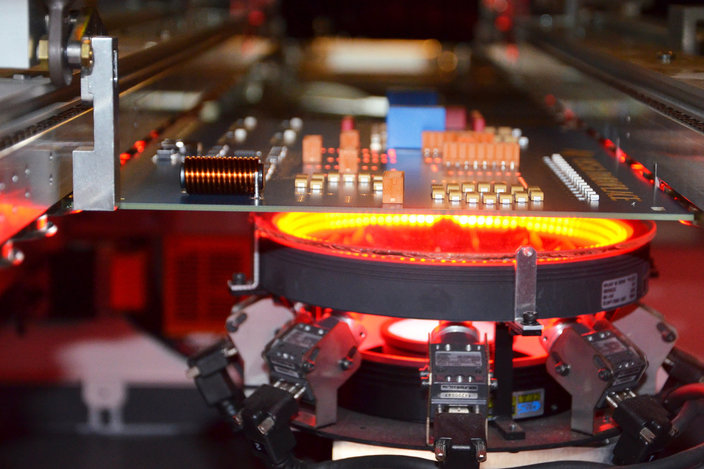

VERSAEYE is an automatic optical inspection module for quality assurance checks after selective soldering. Evaluation is performed in ERSASOFT 5. Test results, images, and parameters are logged for each PCB and can be transferred via Hermes/IPC CFX.
HighlightsVERSAEYE
Early, process-oriented detection of typical soldering defects reduces scrap
Consistent documentation through image/data logging supports audits and root cause analysis

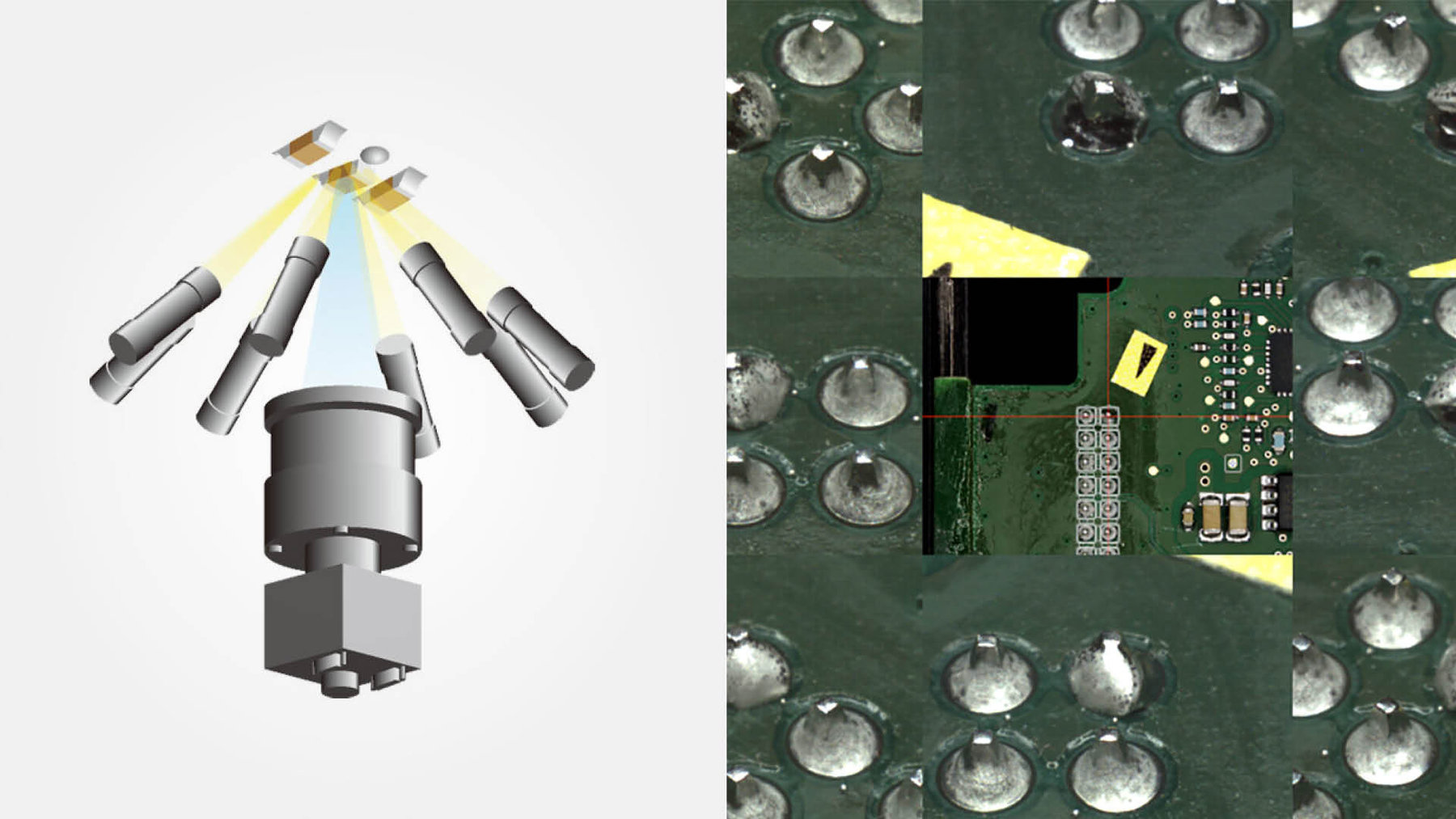

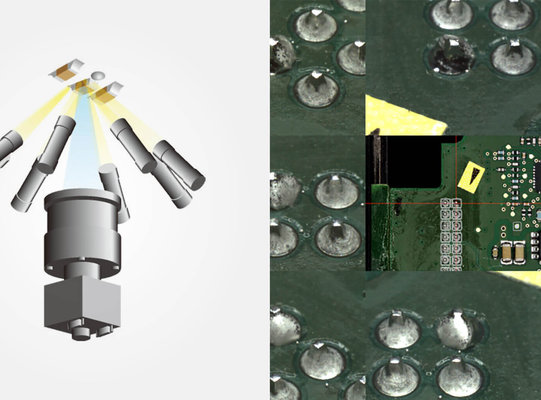

Reproducible results thanks to defined lighting, stop-accurate recording, and recipe-based evaluation
Seamless integration via standardized interfaces makes quality assurance scalable and reliable
