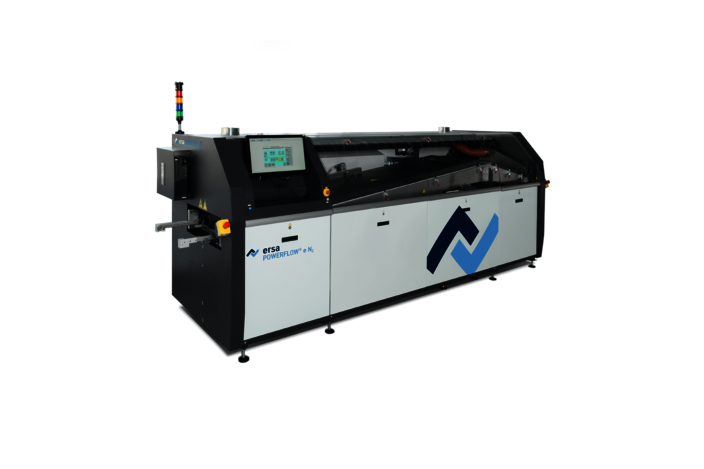

Powerful POWERFLOW wave soldering system Ersa Wave Soldering

POWERFLOW

Technology Highlights POWERFLOWErsa Wave Soldering

Powerful wave soldering system with an attractive price-performance ratio

Modular, flexible and individually expandable preheating concept - variably configurable in length and power (can also be retrofitted)
Monitoring and documentation of all process-relevant data > ready for traceability

POWERFLOWErsa Wave Soldering

POWERFLOWErsa Wave Soldering

Technical data

Length:

from 4,200 to 4,950 mm

Width:

approx. 1,515 mm

Height:

approx. 1,565 mm

Weight:

2,200 to 3,000 kg

Transport System

Finger transport
Max. Transport speed 2.5 m/min
Max. Working width 508 mm
Max. PCB superstructures up to 120 mm

Preheating/Soldering Module

Bottom preheating:

Short-wave radiator cassette, dynamic - max. 10.4 kW (power adjusted)
Medium-wave radiator cassette, max. 6 kW (regulated)
Dimensions: 600 mm length each

Soldering module:

Power approx. 9.8 kW
Solder content: approx. 820 kg lead-free alloy
Solder temperature: max. 300 °C
