Compact full-tunnel wave soldering system POWERFLOW PRO Ersa Wave Soldering
... for cost-optimized wave soldering
The POWERFLOW PRO from the Ersa POWERFLOW series is a powerful full-tunnel soldering machine that enables cost-optimized wave soldering in a nitrogen atmosphere with an attractive price-performance ratio. The ERSASOFT 5 machine software is used to precisely enter the product-specific spray ranges, resulting in greatly reduced flux consumption.
Technology Highlights POWERFLOW PROErsa Wave Soldering
- Modular, flexible and individually expandable preheating concept, variably configurable in length and output (also possible at a later date)
- Award-winning ERSASOFT 5 operating software based on a database > ready for Industry 4.0
- Finger and frame transport with different working widths
POWERFLOW PROErsa Videos

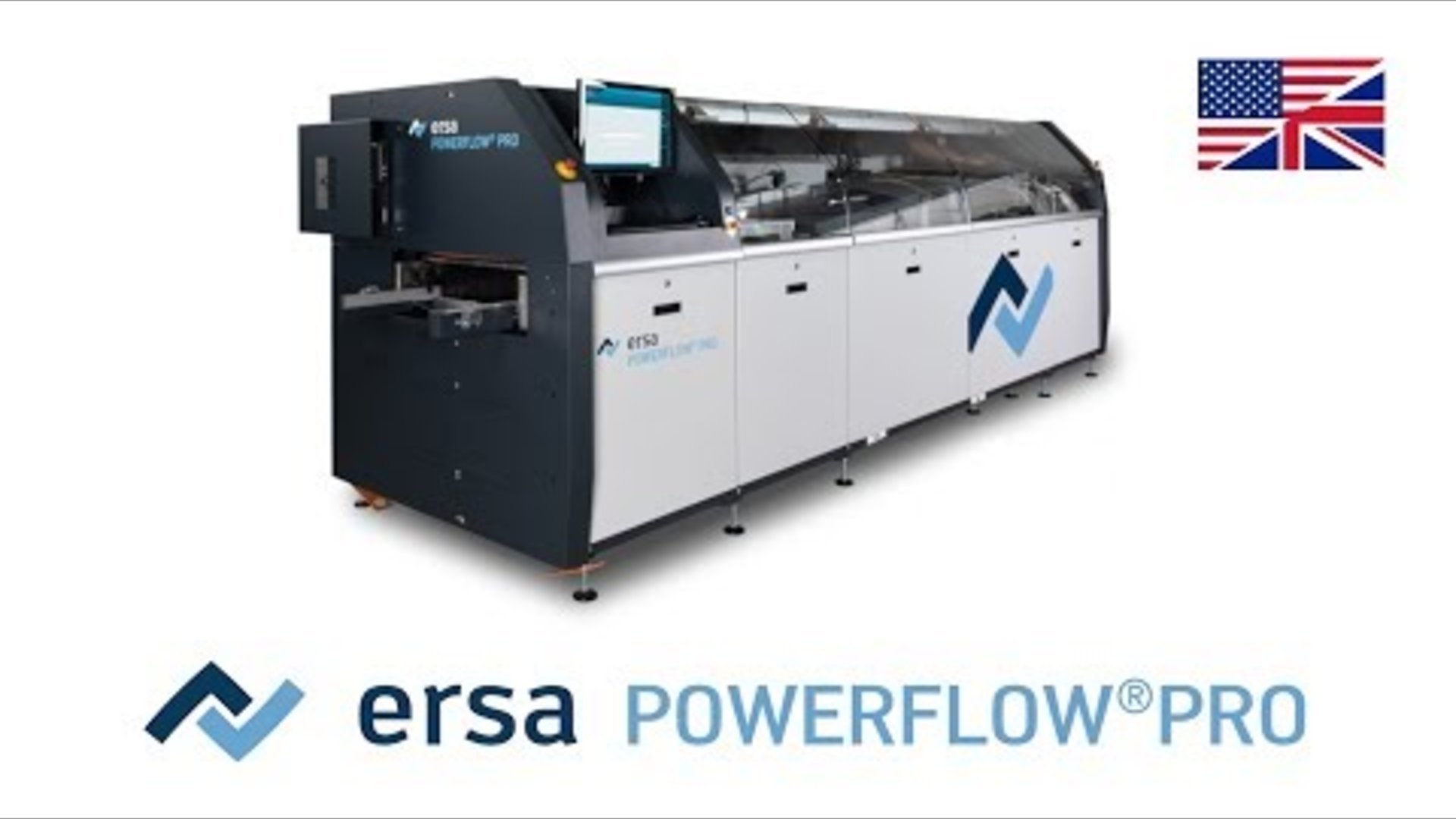

Ersa Wave Soldering – POWERFLOW PRO – product video
Ersa Wave Soldering – POWERFLOW PRO – product video
POWERFLOW PROErsa Wave Soldering
Technical data
Length:
3 Preheating modules 3,9000 mm
Length:
4 Preheating modules 4,650 mm
Width:
approx. 1,400 mm
Height:
approx. 1,600 mm
Transport Systems
- Finger transport, frame transport
- Max. Transport speed 2,5 m/min
- Max. Working width 458 mm
- Max. PCB superstructures up to 100 mm
Preheating/Soldering Module
- Preheating: heat transfer by means of convection, medium-wave radiation and short-wave radiation
- Individually configurable up to 2,000 mm preheating length
- Soldering module: 525-630 kg solder content depending on configuration
